ASRock H370M HDV 8th and 9th Gen Micro ATX Motherboard

ASRock H370M HDV 8th and 9th Gen Micro ATX Motherboard

ASRock H370M HDV 8th and 9th Gen Micro ATX Motherboard is compatible with 9th and 8th Gen Intel Core Processors (Socket 1151). It supports DDR4 2666. Graphics Output Options are DVI-D, D-Sub, HDMI. 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps. 4 SATA3. 4 USB 3.1 Gen1 (2 Front, 2 Rear). It has Full Spike Protection.

ASRock Super Alloy

This motherboard has a High-Density Glass Fabric PCB design which lessens the density of gap in between the PCB layers to protect the motherboard from the short circuits happening because of humidity. Sapphire Black PCB makes it eye-catching. It has been used for the safety and durability of the motherboard.

Faster Data Transmission

ASRock H370M-HDV Motherboard has 4 x USB3.2 onboard which can deliver data transfer 10x faster than USB 2.0. USB 3.2 Gen1 technology has upgraded the data transfer rate up to 5GB/s. It has become more efficient and faster. Asrock is using this technology for stunning data transfer rate. It saves time and improves productivity.

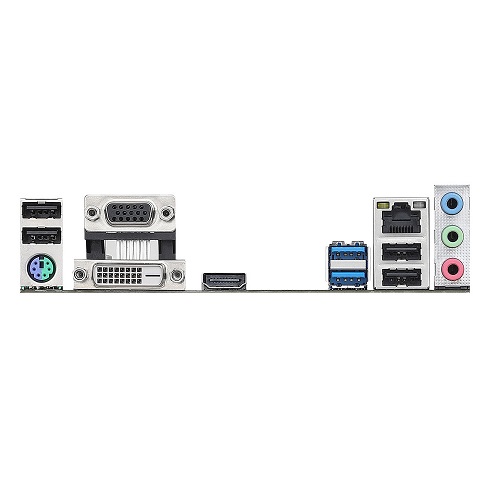

3 Graphics Outputs

ASRock H370M-HDV Motherboard has all three types of most used graphics output connectors. It supports D-Sub, DVI-D, HDMI combo. The board also has the HDMI port which supports 4k resolution. It may need the help of integrated graphics though. With that, it will deliver the most stunning graphic quality. It comes with a 10bit HEVC Decoding/Encoding which provides better video quality and a higher bit depth video experience.

Tripple Monitors

The ASRock H370M-HDV 9th Gen Micro ATX Motherboard supports up to 3 monitors. You can use 3 monitors at the same time without installing another graphics card.

Live Update and Support

ASRock provides live updates and various support software at the App shop for a better user experience. You can download them and keep your motherboard updated and optimize your system for the best use.

ASRock H370M HDV Review

Who doesn’t like affordable stuff, right? The ASRock H310M-HDV is a super duper value option that you should definitely consider, especially if you are really into keep your cost low. Retailing at just RM 256, this board is so affordable that you can keep it as a backup board in case anything bad happens. What’s neat about the ASRock H310M-HDV is that even though it’s low-end, ASRock decided to keep the 8-pin CPU power connection instead of having it at 4-pin like what many brands do.

The board comes with 5-phase power design and supports up to 95W processor, which is plenty sufficient for any user as an Intel Core i7-8700 is just 2/3 of that rated power while one wouldn’t be running K variants on this board. Nothing fancy on the DIMM side of things, the board is so small that one photo could cover it. The ASRock H310M-HDV is actually a Micro-ATX board, you might have mistaken it for a Mini-ITX board from the first pic and I don’t blame you.

It’s just one PCI-E slot larger than a Mini-ITX board, however this board could often fit Mini-ITX casings and have room to spare and you can even use graphics cards as long as it doesn’t take up 2 PCI-E expansion slots.
