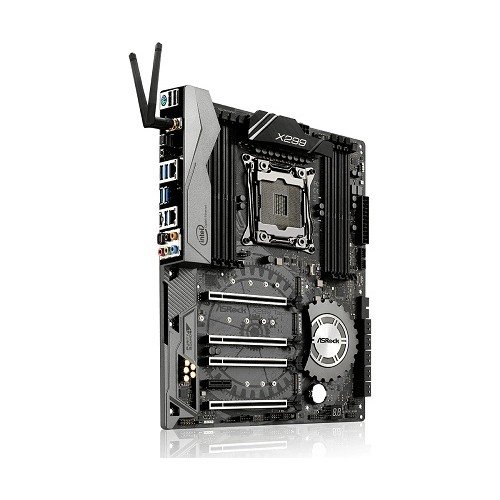

ASRock X299 Taichi USB 3.1 ATX Intel Motherboard
19,000.00৳
Key Features
- Chipsets: Intel X299
- Supports Intel Core X-Series Processor Family
- Supports DDR4 4400+(OC)
- 4 PCIe 3.0 x16, 1 PCIe 2.0 x1
ASRock X299 Taichi USB 3.1 ATX Intel Motherboard
- ASRock Super Alloy
- Supports Intel Core X-Series Processor Family for the LGA 2066 Socket
- 13 Power Phase Design, Dr. MOS
- Supports DDR4 4400+(OC)
- 4 PCIe 3.0 x16, 1 PCIe 2.0 x1
- NVIDIA 3-Way SLI, AMD 3-Way CrossFireX
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound 4 & DTS Connect
- 10 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C)
- 8 USB 3.1 Gen1 (4 Front, 4 Rear)
- Dual Intel Gigabit LAN
- Intel 802.11ac WiFi
- ASRock RGB LED
- BIOS Flashback
- Hyper BCLK Engine III
03 years Warranty
Specification:
| Motherboard | ||
| Chipset | Intel® X299 | |
| Slots | 4 x PCI Express 3.0 x16 Slots* – 1 x PCI Express 2.0 x1 Slot – Supports AMD Quad CrossFireXâ„¢, 3-Way CrossFireXâ„¢ and CrossFireXâ„¢** – Supports NVIDIA® Quad SLIâ„¢, 3-Way SLIâ„¢ and SLIâ„¢*** – 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) – 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)*If you install CPU with 44 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x8/x16/x0 or x8/x8/x16/x8. If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x0/x8/x0 or x8/x0/x8/x8. If you install CPU with 16 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x0/x0/x0 or x8/x0/x4/x0. Supports NVMe SSD as boot disks**3-Way CrossFireXâ„¢ is only supported with CPU with 44 lanes or 28 lanes.***This feature is only supported with CPU with 44 lanes or 28 lanes. |
|
| Wireless LAN | Intel® 802.11ac WiFi Module (Free Bundle) – Supports IEEE 802.11a/b/g/n/ac – Supports Dual-Band (2.4/5 GHz) – Supports high speed wireless connections up to 433Mbps – Supports Bluetooth 4.2 / 3.0 + High speed class II |
|
| Supported Processors | Supports Intel® Coreâ„¢ X-Series Processor Family for the LGA 2066 Socket – Digi Power design – 13 Power Phase design – Supports Intel® Turbo Boost Max Technology 3.0 – Supports ASRock Hyper BCLK Engine III |
|
| Max Memory | Quad Channel DDR4 Memory Technology – 8 x DDR4 DIMM Slots – Supports DDR4 4400+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory – Supports non-ECC RDIMM (Registered DIMM) – Max. capacity of system memory: 128GB** – Supports Intel® Extreme Memory Profile (XMP) 2.0 – 15μ Gold Contact in DIMM Slots*The maximum memory frequency supported may vary by processor type.**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. Please refer to Memory Support List on ASRock’s website for more information. |
|
| BIOS | – 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) – Supports Secure Backup UEFI Technology – ACPI 6.1 Compliant wake up events – SMBIOS 3.0 Support – CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD Voltage Multi-adjustment |
|
| Onboard Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Premium Blu-ray Audio support – Supports Surge Protection – Supports Purity Soundâ„¢ 4 – Nichicon Fine Gold Series Audio Caps – 120dB SNR DAC with Differential Amplifier – TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) – Pure Power-In – Direct Drive Technology – PCB Isolate Shielding – Impedance Sensing on Front Out port – Individual PCB Layers for R/L Audio Channel – Gold Audio Jacks – 15μ Gold Audio Connector – Supports DTS Connect |
|
| Onboard LAN | Gigabit LAN 10/100/1000 Mb/s – 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Dual LAN with Teaming* – Supports Energy Efficient Ethernet 802.3az – Supports PXE*Teaming is supported on Windows® 10 RS2 and above. |
|
| Warranty | 03 Years | |
