ASRock Z790 PG Lightning 13th Gen & 12th Gen ATX Motherboard
Key Features
- Supported CPU: 13th Gen & 12th Gen Intel Core Processors (LGA1700)
- Supported RAM: 4 x DDR5 DIMMs, up to 6800+(OC)
- Graphics Output: 1x HDMI, eDP
- Features: Realtek 2.5G LAN
Specification
| Basic Information | ||
| Supported CPU | – Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) – Supports Intel Hybrid Technology – Supports Intel Turbo Boost Max 3.0 Technology – Supports Intel Thermal Velocity Boost (TVB) – Supports Intel Adaptive Boost Technology (ABT) | |
| Chipset | Intel Z790 | |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio | |
| Expansion Slots | ||
| PCI | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode – 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE3 and PCIE5) – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) – Supports AMD CrossFire | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DDR4 DIMM Slots | |
| Supported Memory | – Dual Channel DDR5 Memory Technology – Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC) – Supports Intel Extreme Memory Profile (XMP) 3.0 | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | – Intel Xe Graphics Architecture (Gen 12) – 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz | |
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |

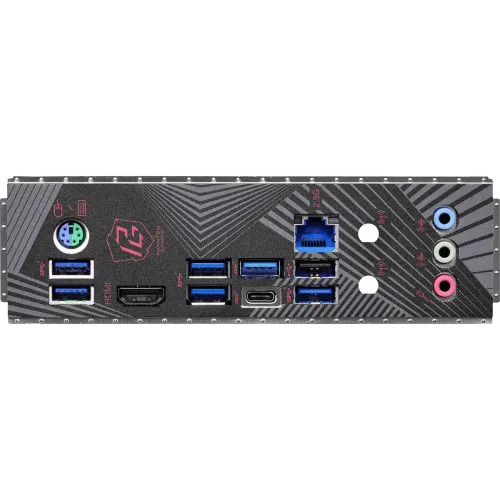

| USB (s) | – 1 x USB 3.2 Gen2x2 Type-C (Rear) – 1 x USB 3.2 Gen2 Type-A (Rear) – 1 x USB 3.2 Gen1 Type-C (Front) – 9 x USB 3.2 Gen1 Type-A (5 Rear, 4 Front) – 3 x USB 2.0 (1 Rear, 2 Front) | |
| LAN Port (s) | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Phantom Gaming LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control | |
| Supported Storage | CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode – 4 x SATA3 6.0 Gb/s Connectors | |
| RAID | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices | |
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Ports | – 1 x eDP Signal Connector – 1 x Power LED and Speaker Header – 1 x RGB LED Header – 3 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin) – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen1 Header | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Others | ||
| Special Features | Superb Productivity – PCIe Gen5 (Graphics) – Dual Channel DDR5 Rock-Solid Durability – 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT – Pre-Installed I/O Shield Ultrafast Connectivity – 2.5G LAN EZ Update – ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker | |
| Bundled Software | Software – ASRock Motherboard Utility (Phantom Gaming Tuning) – ASRock Phantom Gaming LAN Software – ASRock Polychrome SYNC UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
ASRock Z790 PG Lightning 13th Gen & 12th Gen ATX Motherboard

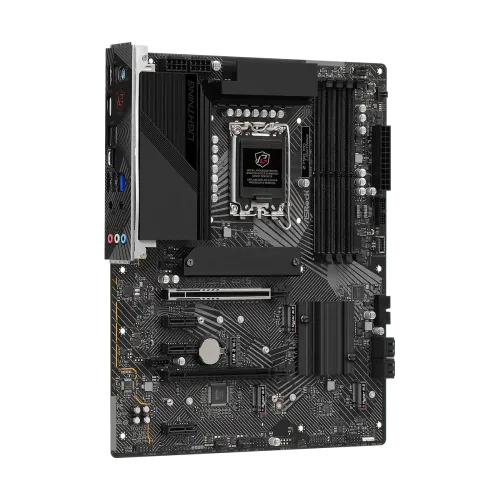

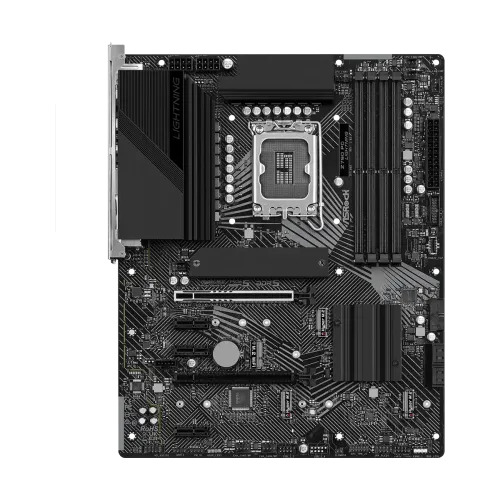

The ASRock Z790 PG Lightning motherboard supports Intel Core processors from generations 13 and 12, features a 14+1+1 phase power design, and uses Dr.MOS for VCore+GT. It has 4 DDR5 DIMMs and can support up to 6800+ MHz (OC). This Motherboard has 1 M.2 Key-E for WiFi, 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, and 3 PCIe 3.0 x1. One HDMI and an eDP graphics output are included. Nahimic Audio and 7.1 CH HD Audio (Realtek ALC897 Audio Codec) are features of the ASRock Z790 PG Lightning. Additionally, this ASRock motherboard has 4 SATA3 ports, 3 Hyper M.2 (PCIe Gen4x4), and 1 Hyper M.2 (PCIe Gen4x4 & SATA3). One USB 3.2 Gen2x2 Type-C, one USB 3.2 Gen2 Type-A, one USB 3.2 Gen1 Type-C, nine USB 3.2 Gen1 Type-A (5 Rear, four Front), three USB 2.0 (1 Rear, two Front), and Realtek 2.5G LAN are included. The most recent PCI Express 5.0 is set to unleash the full power of future high-end graphic cards with its astonishing bandwidth of 128GBps. The ASRock Z790 PG Lightning 13th Gen ATX Motherboard includes Nahimic Audio, which provides you with the most engaging listening experience, bright and rich with details, via USB, Wi-Fi, analog output, or even HDMI. Multiple M.2 storage devices, including one that supports PCI Express 4.0 M.2 SSD, can be installed on this ASRock Z790 PG Lightning motherboard. One USB 3.2 Gen2x2 Type-C, one USB 3.2 Gen2 Type-A, one USB 3.2 Gen1 Type-C, nine USB 3.2 Gen1 Type-A (5 Rear, four Front), three USB 2.0 (1 Rear, two Front), and Realtek 2.5G LAN are included. The most recent PCI Express 5.0 is set to unleash the full power of future high-end graphic cards with its astonishing bandwidth of 128GBps. The ASRock Z790 PG Lightning 13th Gen ATX Motherboard includes Nahimic Audio, which provides you with the most engaging listening experience, bright and rich with details, via USB, Wi-Fi, analog output, or even HDMI. Multiple M.2 storage devices, including one that supports PCI Express 4.0 M.2 SSD, can be installed on this ASRock Z790 PG Lightning motherboard. This 13th Gen ASRock motherboard can do tasks twice as quickly as the previous 3rd generation, providing an incredibly quick data transmission experience. With three years of guarantee, the most recent ASRock Z790 PG Lightning Motherboard is available.
