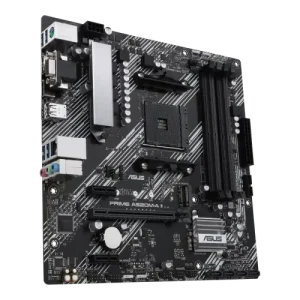

Asus PRIME A520M-A II AM4 micro ATX Motherboard
Original price was: 11,000.00৳ .10,900.00৳ Current price is: 10,900.00৳ .
Key Features
- Model: PRIME A520M-A II
- CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series
- Dual Channel Memory Architecture
- Output: 1 x DisplayPort, 1 x D-Sub, 1 x HDMITM port
- Features: 5X Protection III
- View More Info
Specification
| Basic Information | ||
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | A520 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback” Audio Features – Audio Shielding – Premium Japanese audio capacitors – Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots |
|
| M.2 Socket | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports | |
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 2 x DIMM | |
| Supported Memory | 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Graphics specifications may vary between CPU types | |
| Connector & Ports | ||
| HDMI | 1 x HDMITM port | |
| Display Port (s) | 1 x DisplayPort | |
| D-Sub (s) | 1 x D-Sub | |
| USB (s) | Rear USB: Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 6 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
|
| Supported Storage | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset 4 x SATA 6Gb/s ports Support Raid 0, 1, 10 |
|
| Audio | 3 x Audio jacks Back Panel 1 x Front Panel Audio header (AAFP) |
|
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related Storage related USB Miscellaneous |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design ASUS Thermal Solution |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ – EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 |
|
| Warranty Information | ||
| Manufacturing Warranty | 03-Year Warranty | |
What is the price of Asus PRIME A520M-A II AM4 micro ATX Motherboard in Bangladesh?
The latest price of Asus PRIME A520M-A II AM4 micro ATX Motherboard in Bangladesh is 10,900৳. You can buy the Asus PRIME A520M-A II AM4 micro ATX Motherboard at best price from our website or visit any of our showrooms.
