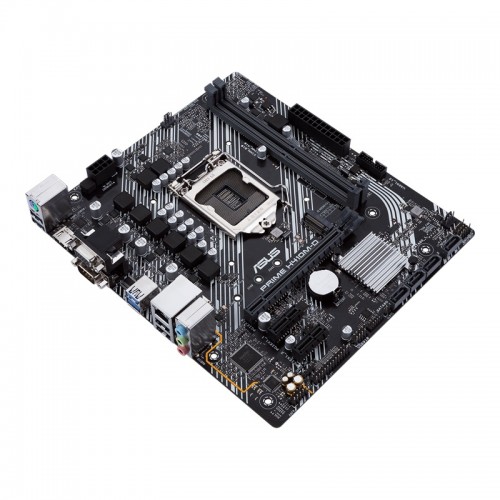

Asus Prime H410M-D Intel 10th Gen Micro ATX Motherboard
Original price was: 8,500.00৳ .8,400.00৳ Current price is: 8,400.00৳ .
Key Features
- Ready for 10th Gen Intel Core processors
- 5X Protection III
- 4 x SATA 6Gb/s port(s)
- M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
Asus Prime H410M-D Intel 10th Gen Micro ATX Motherboard
ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H410 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware. The Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard comes with Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors. It supports Intel 14 nm CPU. It features Dual Channel Memory Architecture and supports 2 x DIMM, Max. 64GB, DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory. Total supports 4x SATA 6Gb/s ports. It also has M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A for Ultrafast connectivity.
The Motherboard has 3 years of warranty.
Specifications
| Basic Information | ||
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H410 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ) |
|
| Audio | Realtek ALC887/897 7.1-Channel High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : – Audio Shielding – Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | Intel 10th Gen Processors: 1 x PCIe 3.0 x16 (x16 mode) Intel H410 Chipset: 2 x PCIe 3.0 x1 |
|
| M.2 Socket | 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) | |
| Memory | ||
| Type | Dual Channel Memory Architecture | |
| Slots | 2 x DIMM | |
| Supported Memory | DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem |
|
| Maximum Memory | Max. 64GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor | |
| Connector & Ports | ||
| D-Sub (s) | 1 x D-Sub | |
| DVI-D (s) | 1 x DVI-D | |
| Supported Storage | 4 x SATA 6Gb/s port(s) | |
| Internal I/O Ports | 1 x CPU Fan connector(s), 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s), 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Front panel audio connector(s) (AAFP), 1 x Clear CMOS jumper(s), 1 x System panel connector 1 x COM port header, 1 x Speaker connector |
|
| TPM (Trusted Platform Module ) | N/A | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot ASUS Thermal Solution – Aluminum heatsink design |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert – EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – CrashFree BIOS 3 – EZ Flash 3 – UEFI BIOS EZ Mode |
|
