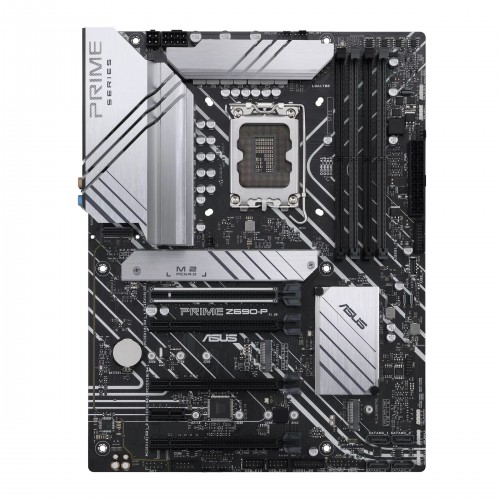

Asus Prime Z690-P 12th Gen ATX Motherboard
Original price was: 29,150.00৳ .27,000.00৳ Current price is: 27,000.00৳ .
Key Features
- Intel LGA 1700 socket: Ready for 12th Gen Intel processors
- 14+1 DrMOS, 8+4 pin ProCool connector
- Large VRM heatsinks, M.2 heatsink
- Supports DDR5, PCIe 5.0, 2.5 Gb Ethernet
Specification
| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Z690 | |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX 30.5cm x 23.4cm |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playbackAudio Features – Audio Shielding – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot(s)Intel Z690 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | Supports 3 x M.2 slots | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort (Support max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Rear USB:Total 6 ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A)Front USB:Total 9 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | V-M.2 slot only (Key E, CNVi & PCIe) * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately. |
|
| Supported Storage | Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
|
| Audio | 5 x Audio jacks | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related USB Miscellaneous |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – LANGuard – Overvoltage Protection – SafeSlot – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot ASUS Thermal Solution – Flexible M.2 heatsink – VRM heatsink design ASUS EZ DIY – ProCool AURA Sync – AURA RGB headers – Addressable Gen 2 RGB headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate – AURA Sync – Fan Xpert 4 AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
|
Asus Prime Z690-P 12th Gen ATX Motherboard
The Asus Prime Z690-P Motherboard features Intel LGA1700 socket Ready for 12th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. It comes with an enhanced power solution. 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes, and durable capacitors for stable power delivery. It features Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 4. The Asus OptiMem II, careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking The Asus Prime Z690-P is supported with DDR5 memory, PCIe 5.0, 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support, 4 PCIe 4.0 M.2. The Asus Prime Z690-P offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate, and PCB cover. Asus 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The Asus Prime Z690-P comes with 3 years of warranty.
