ASUS ProArt X570 CREATOR WIFI AMD AM4 ATX Motherboard

ASUS ProArt X570 CREATOR WIFI AMD AM4 ATX Motherboard

The ASUS ProArt X570-CREATOR WIFI ATX Motherboard supports AM4 socket: Ready for AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series CPUs. It features 14+2 power stages, ProCool II power connector, high-quality alloy chokes, and durable capacitors. The Comprehensive thermal design: Massive VRM heatsink, passive chipset heatsink, and M.2 aluminum heatsinks comprehensive thermal design including Massive VRM heatsink, passive chipset heatsink, and M.2 aluminum heatsinks.

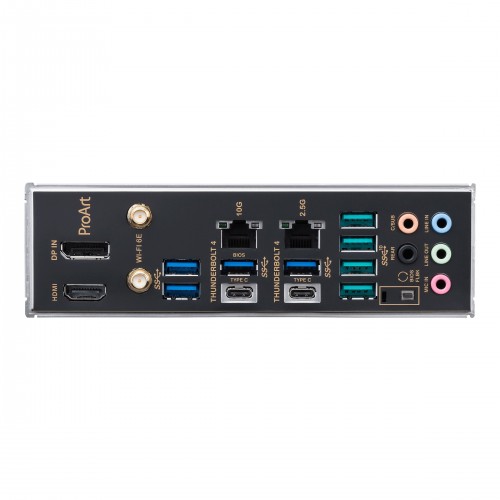

ProArt X570-Creator WiFi employs passive chipset cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital to design elements that provide the best foundation for content creation systems. A comprehensive array of powerful I/O ports including two Thunderbolt 4 ports plus 10 Gb and 2.5 Gb Ethernet ports enables quick data transfers and extensive storage options with flexible, hassle-free connectivity. The ASUS ProArt X570-CREATOR comes with onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast networking speeds along with improved capacity and better performance in dense wireless environments.

The ProArt X570-Creator WiFi boasts an optimized power design layout and the memory performance needed to handle the prodigious power of the latest AMD Ryzen processors, enabling the most demanding multithreaded tasks such as 3D or video rendering and software compiling. It comes with Two-Way AI Noise Cancelation for clear online communication, and ProArt Creator Hub with CreationFirst for one-stop system control. It has been tested for 24/7 operation, validated for extensive compatibility, and equipped with SafeSlot for enhanced durability.

ASUS ProArt X570 CREATOR Review

The top-of-the-line ProArt series – AMD platform X570 is a new segment targeting creativity professional. For example, ASUS ROG Maximus integrates flagship motherboards based on AMD/Intel. At the same time, ROG Zenith belongs to the flagship motherboards based on AMD chipsets for HEDT, that is, for AMD Ryzen Threadripper, while ROG Crosshair unites motherboards based on AMD chipsets for the mainstream segment, including our X570. Therefore, our today’s board belongs to this ProArt series – Asus ProArt X570 Creator WiFi.

The ASUS ProArt is the only X570 motherboard designed and focused around the creativity professional market and as a result, drops all the gaming branding and gaming focused extras. There are no integrated RGB LEDs – instead the ASUS ProArt focuses on a sleek look with an all-black & gold design and horizontally finned black aluminium heatsinks. Underneath the heatsinks is a 14+2 phase power delivery spearheaded by an Digi+ VRM ASP1405I controller operating in a 7+1 configuration. ASUS has focused more on transient response and has appropriately opted to team the phases together instead of using doublers. The end result is still a 14-phase design, done in a way to align with the intended workflow of a professional system. Later we will explain how power phase teaming work.
