Asus TUF GAMING Radeon RX 6800 OC Edition Graphics Card
The Asus TUF GAMING Radeon RX 6800 OC Edition Graphics Card is a tenacious beast with a tough metal exterior, super-efficient cooling, and components that offer enhanced endurance. An all-metal shroud houses three powerful axial-tech fans with dual ball fan bearings and extra blades. Under the exoskeleton, a thick heatsink keeps thermals under tight control, and TUF components, selected for maximum durability and performance, keep the card ahead of the pack. You asked for a mean machine… this one is ready for action.
Key features:
- Axial-tech fan design has been enhanced with more fan blades and a new rotation scheme.
- Dual ball fan bearings can last up to twice as long as sleeve-bearing designs.

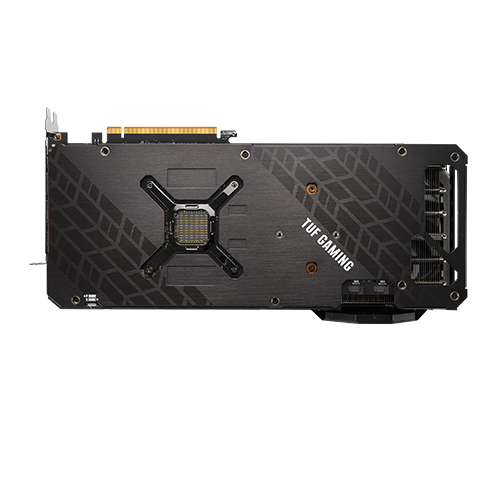

- An all-aluminum shroud, reinforced frame, and metal backplate enhance durability.
- MaxContact heat spreader features a super flat surface for improved thermal transfer.
- A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
- A vented backplate prevents hot air from recirculating through the cooling array.
- GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring
Specifications
| Graphics Chipset | AMD Radeon RX 6800 |
| Memory Size | 16GB |
| Engine Clock | OC mode : Up to 2190MHz (Boost Clock)/ Up to 1980 MHz (Game Clock); Gaming mode : Up to 2155MHz (Boost Clock)/ Up to 1925 MHz (Game Clock) |
| Memory Type | GDDR6 |
| Memory Clock | 16 Gbps |
| Stream Processors | 3840 |
| Memory Bus (Bit) | 256-bit |
| Recommended PowerSupply | 750W |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface (PCI Express) | PCI Express 4.0 |
| Power Connector (Pin) | 2 x 8-pin |
| Ports | Yes x 1 (Native HDMI 2.1) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Multi Display | 4 |
| OpenGL | OpenGL®4.6 |
| Dimensions | 13 ” x 5.52 ” x 2.28 ” Inch 32 x 14.02 x 5.78 Centimeter |
| Warranty | 02 Years |
