Asus TUF GeForce RTX 3070 Gaming 8GB GDDR6 Graphics Card
Key Features
• NVIDIA Ampere Streaming Multiprocessors
• 2nd Generation RT Cores
• Dual Ball Fan Bearings
• Axial-tech Fan Design
Asus TUF GeForce RTX 3070 Gaming 8GB GDDR6 Graphics Card
The Asus TUF GeForce RTX 3070 Gaming 8GB GDDR6 Graphics Card has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, a thick heatsink keeps thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new “old faithful”, this card has your back. TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA’s new high-octane design.
The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.To get heat up off the die and into the heatsink array, we’ve engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer. The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card’s large, 2.7-slot footprint. Components are selected for TUF Gaming graphics cards based on their durability and performance. In addition to top-shelf chokes and MOSFETs, capacitors that meet military-grade certification make the TUF stand tall amongst the competition.
Specifications:
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 8GB | |
| Resolution | 7680 x 4320 | |
| Core Clock | OC mode : 1755 MHz (Boost Clock) Gaming mode : 1725 MHz (Boost Clock) |
|
| Memory Clock | 14 Gbps | |
| BUS Type | PCI Express 4.0 | |
| Memory Interface | 256-bit | |
| CUDA Cores | 5888 | |
| Interface | ||

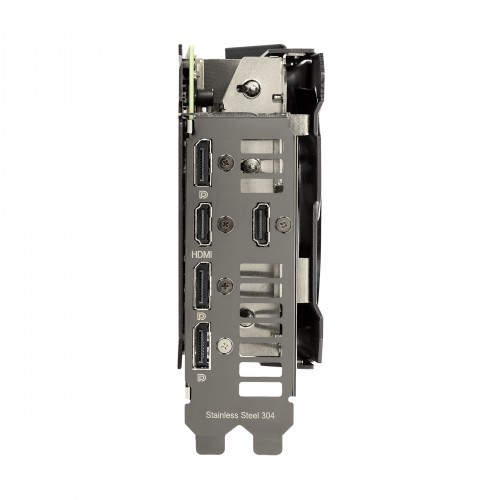

| Display Port | Yes x 3 (Native DisplayPort 1.4a) | |
| HDMI | Yes x 2 (Native HDMI 2.1) | |
| HDCP | HDCP Support Yes (2.3) | |
| Power Specifications | ||
| Connectors | 2 x 8-pin | |
| Recommended PSU | 750W | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| OpenGL | OpenGL 4.6 | |
| Physical Specifications | ||
| Dimensions | 299.9 x 126.9 x 51.7 mm | |
| Warranty | ||
| Manufacturing Warranty | 2 Years | |
