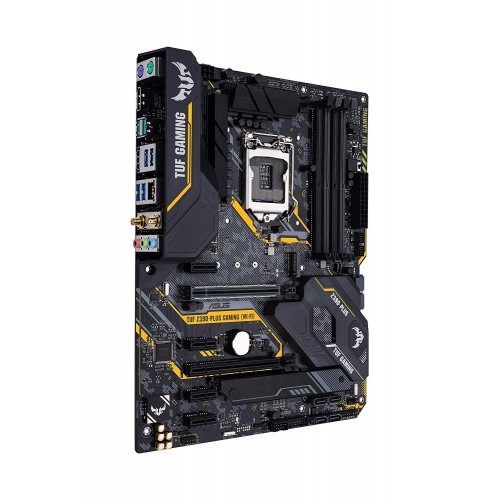

Asus TUF Z390-PLUS GAMING (WI-FI) 9th Gen Motherboard
Original price was: 22,000.00৳ .20,800.00৳ Current price is: 20,800.00৳ .
Key Features
• CPU: 9th / 8th Gen Pentium® Gold and Celeron
• Intel® Z390
• 4 x DDR4 DIMM
Asus TUF Z390-PLUS GAMING (WI-FI) 9th Gen Motherboard
AsusTUF Z390-PLUS GAMING (WI-FI) 9th Gen Motherboard Protection: SafeSlot, ESD guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability.Military-grade TUF Components: TUF LANGuard, TUF chokes, TUF capacitors, and TUF MOSFETs for maximum durability.OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.MemOK! II: Automatically fixes boot failures that arise due to memory overclocking and instability Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality.Intel Wi-Fi: The latest 802.11ac Wireless-AC 9560 integrated adapter, with 2×2 MU-MIMO and wide 160MHz channels for up to 1.73Gbps transfers.
Specifications:
| Basic Information | ||
| Supported CPU | Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 3.0 |
|
| Chipset | Intel® Z390 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
|
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Expansion Slots | ||
| PCI | 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1 4 x PCIe 3.0/2.0 x1 *1 |
|
| M.2 Socket | 1 x M.2 Socket 3, with M key | |
| Memory | ||
| Type | Dual Channel Memory Architecture | |
| Slots | 4 x DIMM DDR4 | |
| Supported Memory | 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333 (O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) |
|
| Maximum Mamory | 64GB | |
| Graphics | ||
| Graphics | Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Display Port (s) | 1 x DisplayPort | |

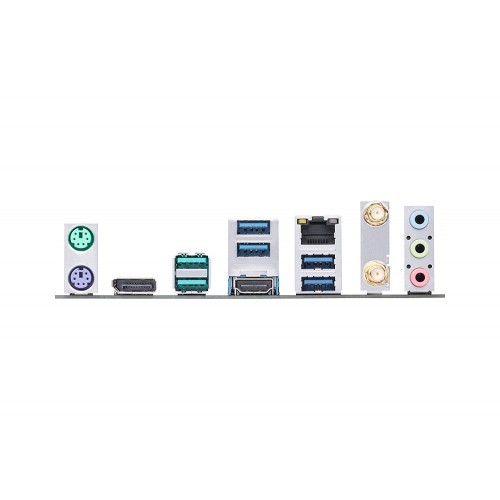

| USB (s) | Intel® Z390 Chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 4 at mid-board) Intel® Z390 Chipset : 3 x USB 2.0/1.1 port(s) (3 at mid-board) |
|
| LAN Port (s) | 1 x LAN (RJ45) port(s) | |
| Supported Storage | Intel® Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 6 x SATA 6Gb/s port(s), gray, *3 Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card |
|
| Audio | 1 x Front panel audio connector(s) (AAFP) Back I/O Ports 3 x 8-channel Audio I/O |
|
| Internal I/O Ports | 2 x Aura RGB Strip Header(s) 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x CPU OPT Fan connector(s) (4 -pin) 2 x Chassis Fan connector(s) (4 -pin) 1 x AIO_PUMP connector () 1 x S/PDIF out header(s) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Limited | |
