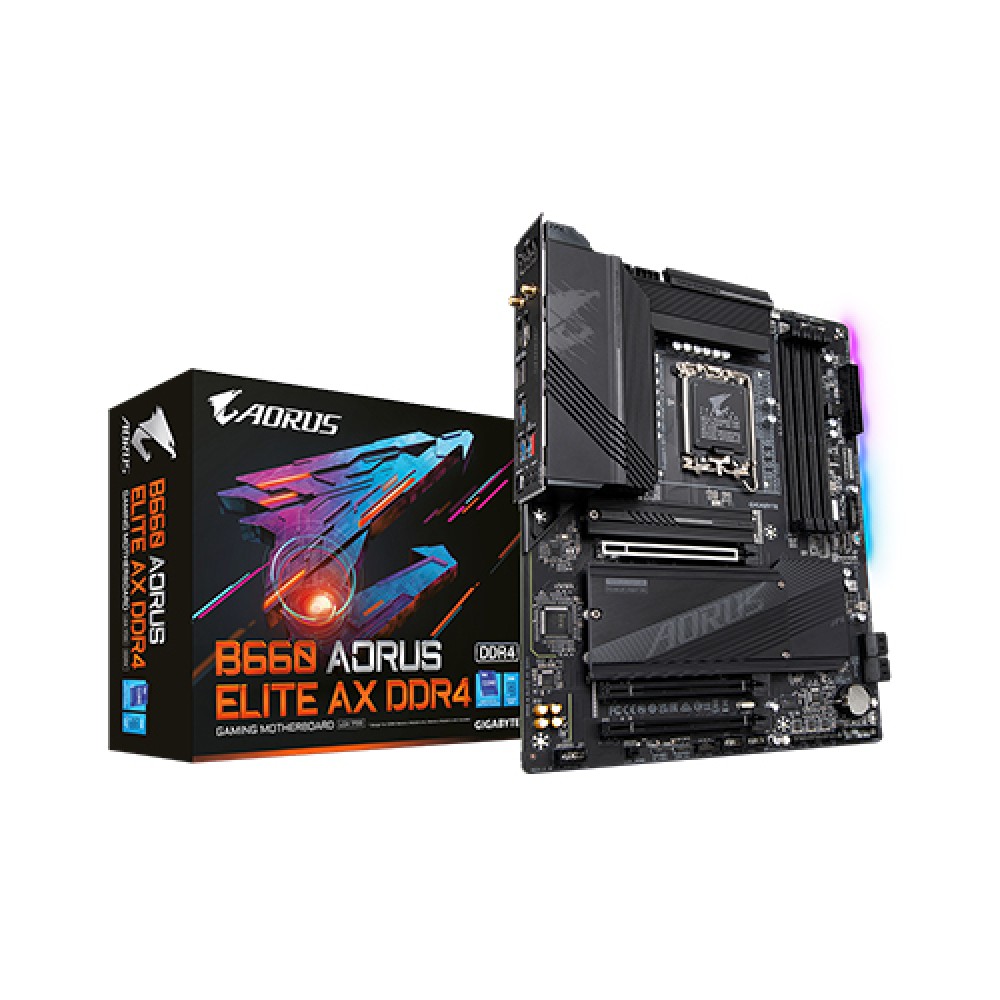

GIGABYTE B660 AORUS ELITE AX DDR4 12TH GEN MOTHERBOARD
22,700.00৳
Key Features
- High Definition Audi
- 1 X Optical S/PDIF Out Connector
- Dual Channel Memory Architecture
- Intel B660 Express Chipset
Specifications
| Motherboard | |
| Supported CPU | LGA1700 Socket: Support For 12th Generation Intel® Core™, Pentium® Gold And Celeron® Processors* L3 Cache Varies With CPU |
| Chipset | Intel B660 Express Chipset |
| Memory | Support For DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz Memory Modules 4 X DDR4 DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules |
| Graphics | 1 X HDMI Port, Supporting A Maximum Resolution Of 4096×2160@60 Hz * Support For HDMI 2.0 Version And HDCP 2.3. 1 X DisplayPort, Supporting A Maximum Resolution Of 4096×2304@60 Hz * Support For DisplayPort 1.2 Version And HDCP 2.3 |
| Slots | 1 X PCI Express X16 Slot, Running At X16 (PCIEX16) * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. (The PCIEX16 Slot Conforms To PCI Express 4.0 Standard.) 2 X PCI Express X1 Slots (The PCIEX1 Slots Conform To PCI Express 3.0 Standard.) |
| Supported Storage | CPU: 1 X M.2 Connector (Socket 3, M Key, Type 2260/2280/22110 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU) Chipset: 1 X M.2 Connector (Socket 3, M Key, Type 2260/2280/22110 PCIe 4.0 X4/X2 SSD Support) (M2P_SB) 1 X M.2 Connector (Socket 3, M Key, Type 2260/2280/22110 PCIe 3.0 X4/X2 SSD Support) (M2M_SB) 4 X SATA 6Gb/S Connectors |
| Bluetooth | BLUETOOTH 5.2 |
| LAN | Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel |
| USB Port | Chipset: 2 X USB Type-C® Ports With USB 3.2 Gen 2 Support (1 Port On The Back Panel, 1 Port Available Through The Internal USB Header) 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel 2 X USB 3.2 Gen 1 Ports, Available Through The Internal USB Header Chipset+USB 3.2 Gen 1 Hub: 4 X USB 3.2 Gen 1 Ports On The Back Panel Chipset+2 USB 2.0 Hubs: 8 X USB 2.0/1.1 Ports (4 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers) |
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X 4-Pin ATX 12V Power Connector 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 3 X System Fan Headers 1 X System Fan/Water Cooling Pump Header 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 3 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C® Header, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 X Reset Button 1 X Q-Flash Plus Button 1 X Reset Jumper 1 X Clear CMOS Jumper |
| External I/O Ports | 1 X USB Type-C® Port, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen 2 Type-A Port (Red) 4 X USB 3.2 Gen 1 Ports 4 X USB 2.0/1.1 Ports 2 X SMA Antenna Connectors (2T2R) 1 X DisplayPort 1 X HDMI 2.0 Port 1 X RJ-45 Port 1 X Optical S/PDIF Out Connector 2 X Audio Jacks |
| WiFi | Intel Wi-Fi 6E AX211 |
| DIMENSIONS | 30.5cm X 24.4cm |
| Form Factor | 30.5cm X 24.4cm |
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Warranty | 3 Years |
