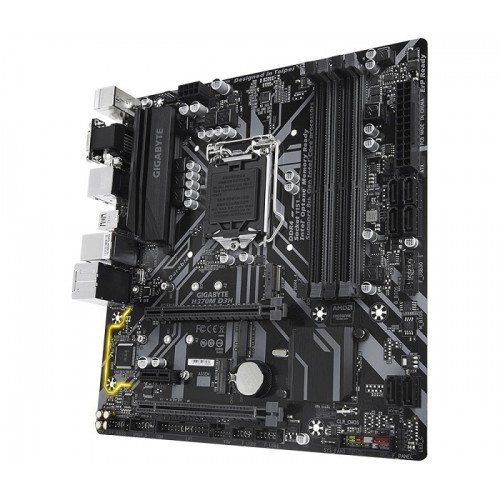

Gigabyte H370M D3H Ultra Durable 8th Gen Motherboard
Key Features
• Supports 8th Gen Intel Core i3, i5 & i7 Processors
• Intel H370 Express Chipset
• RAM Slot: 4 x DDR4 DIMM
• PCI Slot: 3 x PCI Express slots
Gigabyte H370M D3H Ultra Durable 8th Gen Motherboard
Gigabyte H370M D3H Micro ATX ultra durable motherboard has the compatibility with 8th Gen i3, i5 & i7 processors. This board also supports dual channel DDR4 maximum 64GB memory and dual ultra-fast M.2 with PCIe Gen3 X4/X2 & SATA interface. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 4096×2160@30 Hz for HDMI & 1920×1200@60 Hz for DVI-D & D-Sub port. This latest motherboard has the facility of USB 3.1 Gen2 Type-C & Type-A, Intel GbE LAN with cFosSpeed, ultra durable 25KV ESD and 15KV Surge LAN Protection and ready for Intel Optane memory.
Specification:
| Basic Information | ||
| Supported CPU | Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU |
|
| Chipset | Intel® H370 Express Chipset | |
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 23.0cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI) |
|
| M.2 Socket | 2 x M.2 Socket 3 connectors | |
| Memory | ||
| Type | Dual channel memory architecture | |
| Slots | 4 x DDR4 DIMM sockets supporting | |
| Supported Memory | DDR4 2666/2400/2133 MHz memory modules ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor. |
|
| Maximum Mamory | 64 GB | |
| Graphics | ||
| Graphics | D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. |
|
| Max Shared Memory | 1GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |

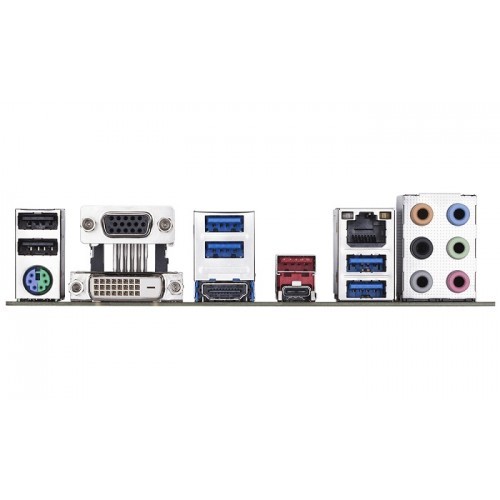

| USB (s) | 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) * The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable. |
|
| LAN Port (s) | Intel® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x2 SSD support) (M2P_16G) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2Q_32G) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready |
|
| Audio | Realtek® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 1 x front panel header front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) serial port header 1 x parallel port header 1 x Clear CMOS jumper |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |
