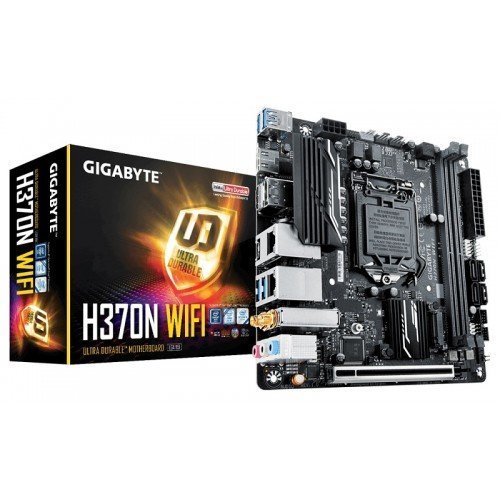

Gigabyte H370N WIFI 8th Gen Mini-ITX Motherboard
Original price was: 11,800.00৳ .11,250.00৳ Current price is: 11,250.00৳ .
- Model: H370N WIFI
- Chipset: Intel H370 Express
- Intel Socket 1151 for 8th Gen Core Processors
- 2 x DIMM, Max. 32GB DDR4
- 1 x PCIe Slot
Specification:
| Basic Information | ||
| Supported CPU | Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors//Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU |
|
| Chipset | Intel® H370 Express Chipset | |
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G) 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support) (M.2)* |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM sockets | |
| Supported Memory | Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor. |
|
| Maximum Mamory | 32 GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time |
|
| Max Shared Memory | 1 GB | |
| Connector & Ports | ||
| HDMI | 2 x HDMI ports | |
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports available through the internal USB header |
|
| LAN Port (s) | 2 x Intel® GbE LAN chips (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G) 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support) (M.2)* * The connector is on the back of the motherboard. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane™ Memory Ready |
|
| Audio | Realtek® ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x digital LED strip header 1 x digital LED strip power select jumper 1 x RGB (RGBW) LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
