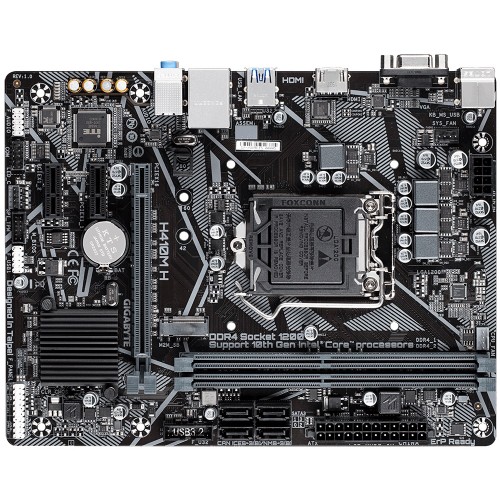

Gigabyte H410M H 10th Gen Micro ATX Motherboard
Original price was: 10,500.00৳ .9,000.00৳ Current price is: 9,000.00৳ .
Key Features
• Intel Socket LGA1200 for 10th Gen Processors
• 8-Channel HD Audio
• Smart Fan 5 features
• Anti-Sulfur Resistors Design
Gigabyte H410M H 10th Gen Micro ATX Motherboard
Gigabyte H410M H 10th Gen Micro ATX Motherboard is focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, but 5 more hybrid fan headers that support both PWM and Voltage mode fans have also been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking. GIGABYTE motherboards use high-end audio capacitors.
Specification:
| Basic Information | ||
| Supported CPU | Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package L3 cache varies with CPU |
|
| Chipset | Intel H410 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) | |
| Memory | ||
| Type | Dual-channel architecture | |
| Slots | 2 x DDR4 DIMM | |
| Supported Memory | Intel® Core™ i9/i7 processors: Support for DDR4 2933/ 666/ 2400/ 2133 MHz memory modules Intel Core i5/ i3/ Pentium /Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules |
|
| Maximum Mamory | 64 GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096×2160@30 Hz |
|
| Max Shared Memory | 512MB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI ports, supporting a maximum resolution of 4096×2160@30 Hz | |
| USB (s) | 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors |
|
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector 1 x CPU fan header, 1 x system fan header, 1 x RGB LED strip header 4 x SATA 6Gb/s connectors, 1 x M.2 Socket 3 connector 1 x front panel header, 1 x front panel audio header 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
|
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
| Others | ||
| Special Features | Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Support for Windows 10 64-bit | |
