Sale!
Gigabyte Z390 GAMING SLI 9th Gen ATX Motherboard
Original price was: 16,050.00৳ .15,200.00৳ Current price is: 15,200.00৳ .
Key Features
• Intel Socket LGA1151 for 9th/8th Gen Processors
• Chipset: Intel Z390 Express
• 4 x DIMM, Max. 64GB DDR4
• 6 x PCIe slots
Gigabyte Z390 GAMING SLI 9th Gen ATX Motherboard
Gigabyte Z390 GAMING SLI ATX motherboard compatible with Intel 9th & 8th gen (Socket LGA1151) i3, i5, i7 & i9 processors. This Dual Channel Non-ECC Unbuffered with Immersive Gaming ViBes with ALC1220-VB and High Quality Audio Capacitors with RGB Lighting Effect board has maximum 64GB DDR4 memory and it has the capability of Dual Ultra-Fast M.2 with PCIe Gen3 X4 (1 with Thermal Guard) & SATA interface. If we consider the graphics of this Multi Way Graphics Supported PCIe Armor and Ultra Durable™ Design board has Intel HD graphics having the maximum resolution of 4096×2160@30 Hz for HDMI port. This Lightning-Fast Intel® Thunderbolt™ 3 AIC Supported board has Intel® Native USB 3.1 Gen2 Type-A, Intel® GbE LAN with cFosSpeed Internet Accelerator Software, Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection and Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP.
Gigabyte new 10+2 Phases Digital PWM Design latest 9th gen mainboard with Intel Z390 Express chipset is Intel® Optane™ Memory Ready for your gaming rig and have it the best price in Bangladesh. Order your board from Star Tech online shop and have the delivery at your desired place.
Specification:
| Basic Information | ||
| Supported CPU | Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU |
|
| Chipset | Intel® Z390 Express Chipset | |
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 22.5cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot, running at x2 (PCIEX2) 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DDR4 DIMM sockets | |
| Supported Memory | Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Mamory | 64 GB | |
| Graphics | ||
| Graphics | 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. |
|
| Max Shared Memory | 1 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI | |

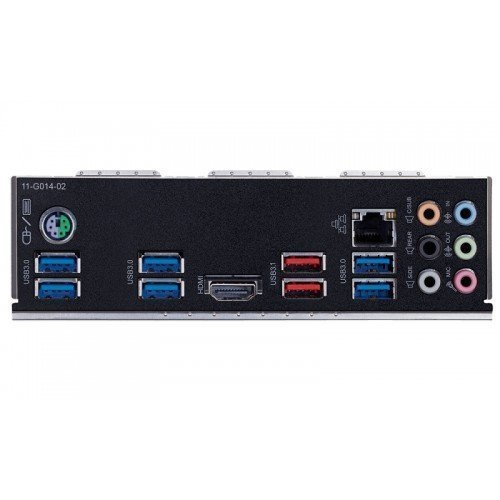

| USB (s) | Chipset: 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel 8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports available through the internal USB header |
|
| LAN Port (s) | Intel® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to “1-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready |
|
| Audio | Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
