Gigabyte Z390 M 9th Gen Micro ATX Motherboard
Key Features
• Supports 9th and 8th Gen Intel Core Processors
• Dual Channel Non-ECC Unbuffered DDR4
• Multi-Way Graphics Support
• Advanced Thermal Design
Gigabyte Z390 M 9th Gen Micro ATX Motherboard

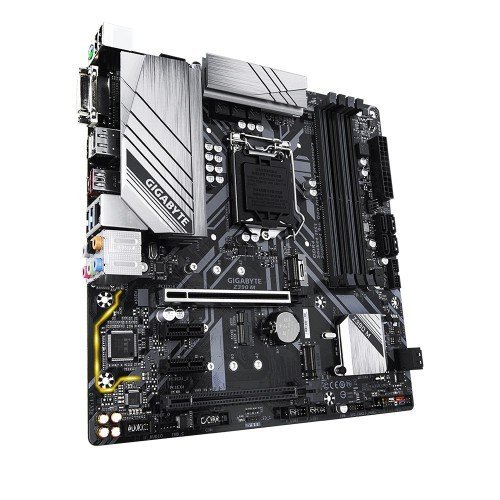

Gigabyte Z390 M GAMING Micro ATX motherboard compatible with Intel 9th & 8th gen (Socket LGA1151) i3, i5, i7 & i9 processors. This Dual Channel Non-ECC Unbuffered with High Quality Audio Capacitor board has maximum 64GB DDR4 memory and it has the capability of dual ultra-fast M.2 with PCIe Gen3 X4 & SATA interface. If we consider the graphics of this multi-way support with PCIe Armor and Ultra Durable™ Design board has Intel HD graphics having the maximum resolution of 1920×1200@60 Hz for DVI-D & 4096×2160@30 Hz of HDMI port. This lightning-fast Intel Thunderbolt™ 3 AIC board has 4 x PCIe slots, Intel® Native USB 3.1 Gen2 Type-A + Type-C, Intel® Gigabit LAN with cFosSpeed, Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection and RGB Lighting Effect in Full Colors.
Gigabyte latest 9th gen mainboard with Intel Z390 Express chipset is a great choice for your desktop setup and have the best price in Bangladesh. Order your PC components from Star Tech online shop and have the delivery at any location.
Specification:
| Basic Information | ||
| Supported CPU | Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package | |
| Chipset | Intel Z390 Express Chipset | |
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P) |
|
| Memory | ||
| Type | DDR4 Dual channel memory architecture |
|
| Slots | 4 x DDR4 DIMM sockets | |
| Supported Memory | Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules | |
| Maximum Mamory | supportS up to 128GB (32GB single DIMM capacity) of system memory** ** Please note that the support for system total memory size depends on the CPU installed. |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. .Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
|
| Max Shared Memory | Maximum shared memory of 1 GB Actual support may vary by CPU |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz | |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |

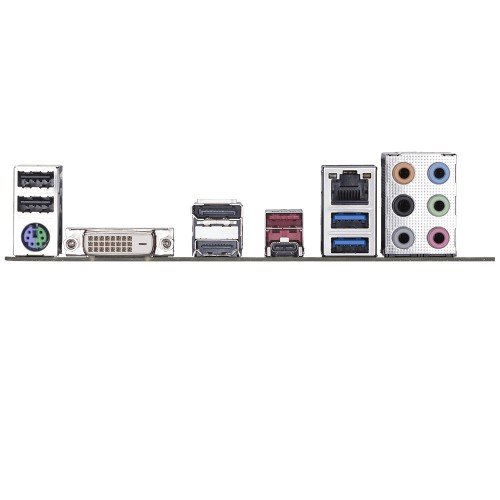

| USB (s) | 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Intel GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10Intel Optane Memory Ready |
|
| Audio | Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper |
|
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |
