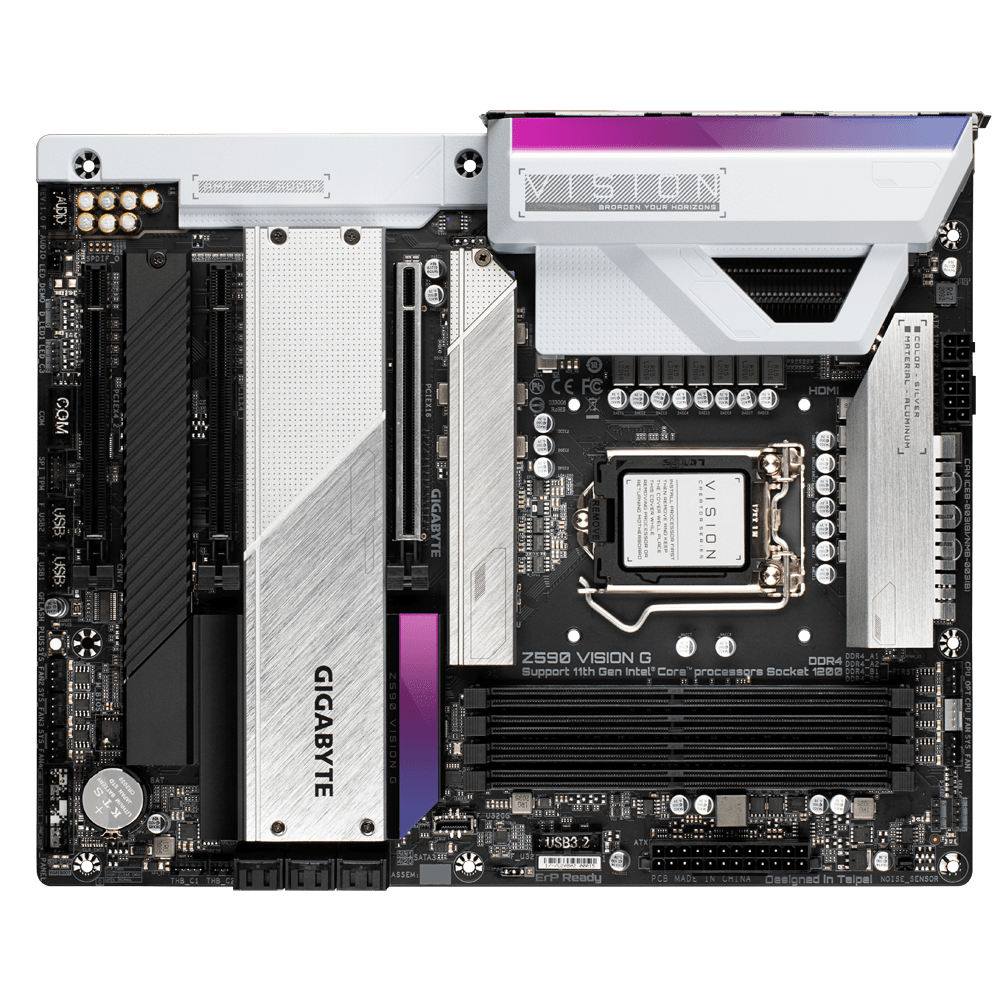

Gigabyte Z590 VISION G Intel 11th Gen ATX Motherboard
Key Features
• Intel Socket LGA1200 for 10th Gen Processors
• Chipset: Z590 VISION G
• 4*DDR4-5000 XMP TBD
• MOS Heatsinks,PCH Heatsink, 4*M.2 Heatsink
Gigabyte Z590 VISION G Intel 11th Gen ATX Motherboard in Bangladesh
The Z590 VISION series motherboards keep the VISION white styling with exclusive hardware design to provide creators with an improved working efficiency. The Z590 VISION series motherboards inherit GIGABYTE’s leadership in motherboard power design and VRM thermal design, using up to 12-phase direct power design paired with highly durable DrMOS to provide the best power delivery. Solid power pin connectors on the Z590 VISION series motherboards ensure that the power delivery is stable while reducing excess heat during high workload to prevent throttling, and make the processor more stable to avoid downtime due to an unstable power supply. With the new design of the fins-array, direct-touch heat-pipe, large heat sinks, and Smart Fan 6, it not only strengthens the thermal effect but also takes into account the appearance design, allowing the GIGABYTE Z590 VISION motherboards to be both stylish and thermally efficient.
Specification
| Basic Information | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | 30.5cm x 24.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) (The PCIEX4 slot conforms to PCI Express 3.0 standard.) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM sockets | |
| Supported Memory | 11th Generation Intel Core i9/ i7/ i5 processors: Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128 GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x USB Type-C port, supporting USB Type-C and DisplayPort video outputs and a maximum resolution of 4096 x 2304 @ 60 Hz 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 30 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 30 Hz | |
| USB (s) | 1 x USB Type-C port, supporting USB Type-C and DisplayPort video outputs and a maximum resolution of 4096 x 2304 @ 60 Hz
2 x USB Type-C ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header) |
|
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbit/ 1 Gbit/ 100 Mbit) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/ x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/ x2 SSD support) (M2B_CPU)(M2C_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
|
| Audio | Realtek ALC4080 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|

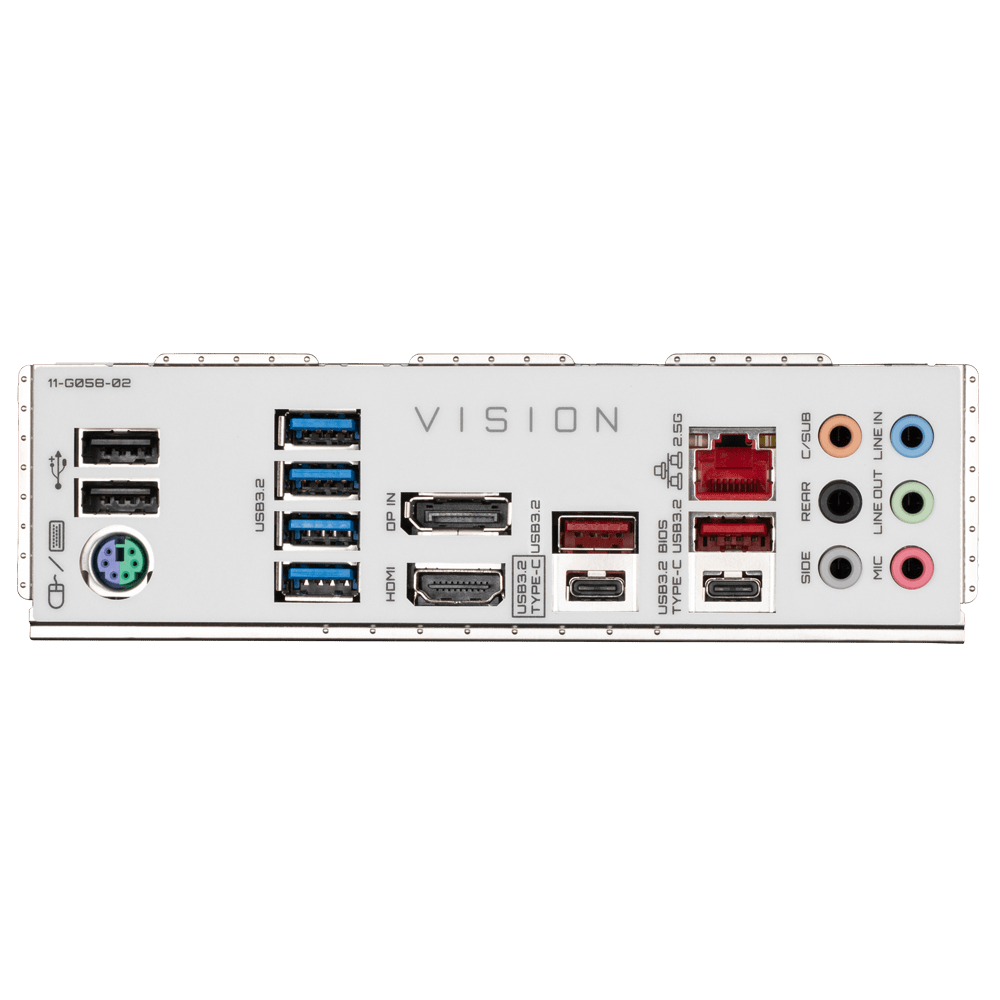

| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button 1 x noise detection header |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only) | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
