Sale!

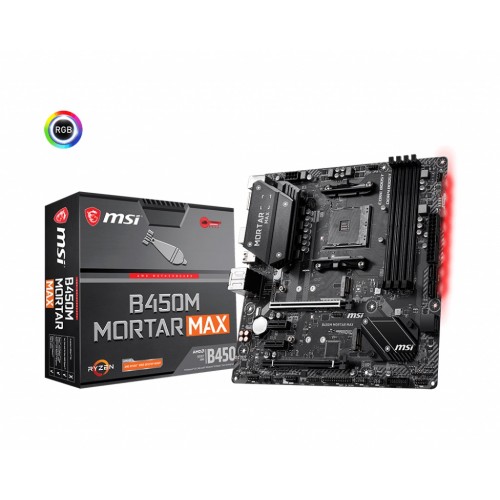

MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard (Global)
Original price was: 11,000.00৳ .10,400.00৳ Current price is: 10,400.00৳ .
Key Features
- Model: MSI B450M MORTAR MAX Military Style
- Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen
- Supports DDR4, up to 4133(OC) MHz
- Extended Heatsink Design
- Lightning Fast Game experience
- View More Info
Specification
| Basic Information | ||
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 | |
| Chipset | AMD B450 Chipset | |
| BIOS | Flash BIOS Button | |
| Form Factor | M-ATX Form Factor | |
| Audio | Realtek ALC892 Code: – 7.1-Channel High Definition Audio – Supports S/PDIF output |
|
| Expansion Slots | ||
| PCI | – 1 x PCIe 3.0 x16 slot (PCI_E1) – Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors – Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors – Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors – 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1 – 2 x PCIe 2.0 x1 slots2 |
|
| M.2 Socket | AMD B450 Chipset: – 1 x M.2 slots (M2_2, Key M)1 – Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices AMD CPU: |
|
| Memory | ||
| Type | DDR4 | |
| Slots | – 1 x PCIe 3.0 x16 slot (PCI_E1) – Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors – Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors – Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors – 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) – 2 x PCIe 2.0 x1 slots |
|
| Supported Memory | – Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) – Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) – Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) – Supports non-ECC UDIMM memory – Supports ECC UDIMM memory (non-ECC mode) |
|
| Maximum Memory | – support up to 64GB | |
| Graphics | ||
| Graphics | Only support when using AMD Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors | |
| Max Shared Memory | Maximum shared memory of 2048 MB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz | |
| Display Port (s) | 1 x DisplayPort, support a maximum resolution of 4096×2304 @60Hz, 2560×1600 @60Hz, 3840×2160 @60Hz, 1920×1200 @60Hz | |
| DVI-D (s) | Yes | |

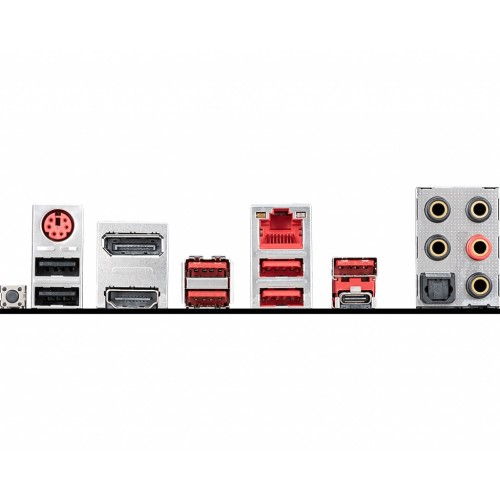

| USB (s) | AMD B450 Chipset: – 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel – 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel – 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector – 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU AMD Processor: – 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
|
| LAN Port (s) | 1 x Realtek RTL8111H-CG Gigabit LAN controller | |
| Supported Storage | AMD B450 Chipset: – 4 x SATA 6Gb/s ports1 – 1 x M.2 slots (M2_2, Key M)1 – Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices AMD CPU: – 1x M.2 slot (M2_1, Key M)1 – Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
|
| Audio | – 7.1-Channel High Definition Audio – Supports S/PDIF output |
|
| Internal I/O Ports | 1 x 24-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connector (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 3 x 4-pin system fan connectors 2 x 5050 RGB LED strip 12V connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Serial Port connector 1 x Parallel Port connector |
|
| TPM (Trusted Platform Module ) | 1 x TPM module connector | |
| Others | ||
| Special Features | RAID: AMD B450 Chipset – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0 and RAID 1 for M.2 NVMe RAID |
|
| Bundled Software | – Support for Windows 10 64-bit – Support for Windows 7 64-bit (To support Windows 7 64-bit, must install an AMD Pinnacle Ridge & Summit Ridge CPU) |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years Warranty | |
What is the price of MSI B450M MORTAR MAX Military Style Gaming Motherboard in Bangladesh?
The latest price of MSI B450M MORTAR MAX Military Style Gaming Motherboard in Bangladesh is 10,400৳. You can buy the MSI B450M MORTAR MAX Military Style Gaming Motherboard at best price from our website or visit any of our showrooms.
