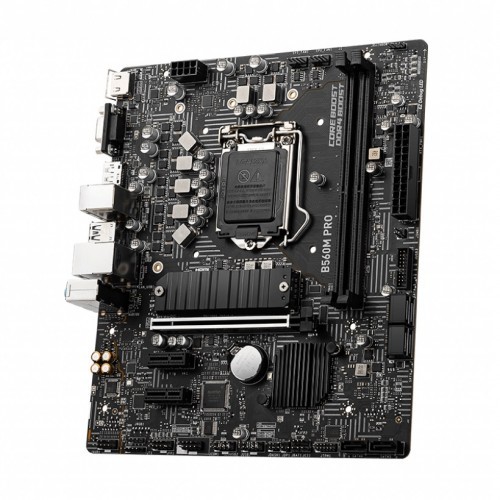

MSI B560M PRO 10th and 11th Gen Micro ATX Motherboard
11,000.00৳
Key Features
• Supports 10th & 11th Gen Core, Pentium Gold & Celeron processors
• Socket: LGA 1200, Form Factor: Micro ATX
• Supports DDR4, up to 5066(OC) MHz
• PCIe 4.0, Lightning Gen4 x4
MSI B560M PRO 10th and 11th Gen Micro ATX Motherboard
The latest MSI B560M PRO Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5066(OC) MHz. This motherboard featured Core Boost With a premium layout and digital power design to support more cores and provide better performance. Here used Advanced technology to deliver pure data signals for the best performance and stability.
This motherboard has PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr that provides you Lightning Fast Experience. By 2.5G LAN, you can Upgrade network solution for professional and multimedia use that delivers a secure, stable and fast network connection. Here, Audio Boost rewards your ears with studio-grade sound quality. This motherboard has Steel Armor that Protecting VGA cards against bending for better performance, stability, and strength. This latest MSI PRO series motherboards are designed for professional and satisfy workflow. The MSI B560M PRO 10th and 11th Gen Micro ATX Motherboard has 03 years of warranty.
Specification
| Basic Information | ||
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200 |
|
| Chipset | Intel B560 chipset | |
| BIOS | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language |
|
| Form Factor | mATX Form Factor 9.3 in. x 8.0 in. (23.6 cm x 20.2 cm) |
|
| Audio | Realtek AL897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From B560 chipset) |
|
| M.2 Socket | 1x M.2 slot (Key M) | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2x DDR4 memory slots | |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory,Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | Up to 64GB | |
| Graphics | ||
| Graphics | 1x VGA port, supports a maximum resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz,1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz | |
| Display Port (s) | 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz | |
| VGA (s) | 1x VGA port, supports the maximum resolutions of 2048×1536 @50Hz, 2048×1280 @60Hz, and 1920×1200 @60Hz | |
| USB (s) | 6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through internal USB 3.2 Gen1 connector) |
|
| LAN Port (s) | 1x Realtek 8125B 2.5Gbps LAN controller | |
| Supported Storage | 6x SATA 6Gb/s ports (From B560 chipset) 1x M.2 slot (Key M)1 Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)1,Supports 2242/ 2260/ 2280 storage devices,Supports Intel Smart Response Technology for Intel Core processors |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector,1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector,1x Clear CMOS jumper 1x Serial port connector,1x Tuning Controller Connector |
|
| TPM (Trusted Platform Module ) | 1 x TPM module connector | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |
