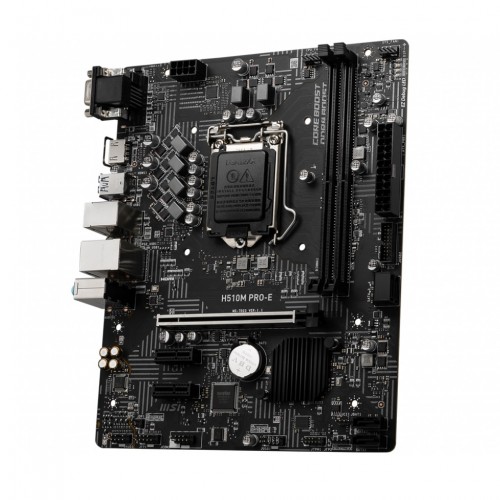

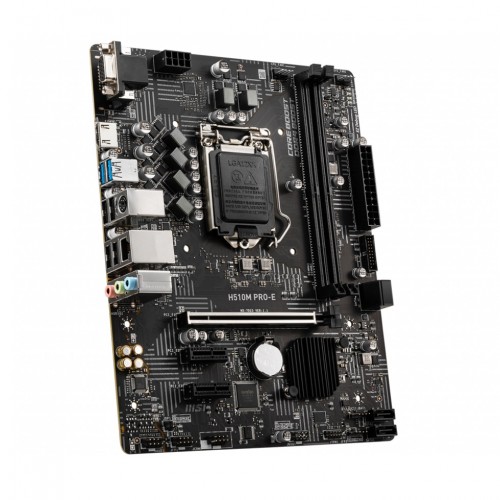

MSI H510M PRO-E Intel 10th Gen and 11th Gen Mirco ATX Motherboard
9,400.00৳
Key Features
- Supports 10th Gen Core, 11th Gen Core, Pentium Gold & Celeron for LGA 1200 socket
- Supports DDR4 Memory, up to 3200(Max) MHz
- With premium layout and digital power design
- Lightning Fast Experience: PCIe 4.0
MSI H510M PRO-E Intel 10th Gen and 11th Gen Mirco ATX Motherboard
The MSI H510M PRO-E Intel 10th Gen and 11th Gen Mirco ATX Motherboard helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI H510M PRO Intel 10th Gen and 11th Gen Mirco-ATX Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 3200(Max) MHz. The Motherboard featured with premium layout and digital power design to support more cores and provide better performance, DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability, Lightning Fast Experience: PCIe 4.0. It is Protecting VGA cards against bending and EMI for better performance, stability and strength.
Here, MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. It is Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards. The Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
The latest MSI H510M PRO-E Intel 10th Gen and 11th Gen Mirco-ATX Motherboard has 03 years warranty.
Specifications
| Basic Information | ||
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1 | |
| Chipset | Intel H510 Chipset | |
| Form Factor | mATX Form Factor 9.3 x 7.5 in. (23.6 cm x 19.0 cm) |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From PCH) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2x DDR4 memory slots | |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | up to 64GB | |
| Graphics | ||
| Graphics | 1x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 port | |
| VGA (s) | 1x VGA port | |
| USB (s) | Intel H510 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) |
|
| LAN Port (s) | 1x Realtek RTL8111 Gigabit LAN controller | |
| Supported Storage | 4x SATA 6Gb/s ports (From H510 Chipset) | |
| Audio | 1x Front panel audio connector | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports), 1x USB 2.0 connector (support additional 2 USB ports), 1x 4-pin CPU fan connector 1x 4-pin system fan connector, 1x Front panel audio connector 2x System panel connectors 1x Serial port connector, 1x Chassis Intrusion connector, 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |
