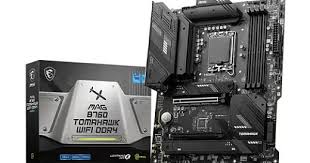

MSI MAG B760 TOMAHAWK WIFI DDR5 13th Gen & 12th Gen ATX Motherboard
Original price was: 27,000.00৳ .26,000.00৳ Current price is: 26,000.00৳ .
- Supported CPU: 12th/13th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR5, Max 128GB 7000+(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- : 3x M.2 slot, Intel Wi-Fi 6E, Bluetooth 5.3
Specification
| BASIC INFORMATION | |
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700 |
| Chipset | INTEL B760 |
| Form Factor | ATX 243.84mmx304.8mm |
| Audio | Realtek ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
| EXPANSION SLOTS | |
| PCI | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x4 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| MEMORY | |
| Type | DDR5 |
| Slots | 4 |
| Supported Memory | Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7000+ MHz 1DPC 2R Max speed up to 6600+ MHz 2DPC 1R Max speed up to 6400+ MHz 2DPC 2R Max speed up to 5600+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile |
| Maximum Memory | 128GB |
| GRAPHICS | |
| Graphics | 1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz |
| CONNECTOR & PORTS | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN Port (s) | Realtek 2.5Gbps LAN |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.3, FIPS, FISMA |
| Supported Storage | 3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | HD Audio Connectors |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| OTHERS | |
| Special Features | 4x EZ Debug LED |
| WARRANTY INFORMATION | |
| Manufacturing Warranty | 3 years
|
