MSI MAG X570S TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard
22,500.00৳
Key Features
• Supports Ryzen 5000, 5000 G, 4000 G, 3000, 3000 G, 2000 & 2000 G-Series processors
• Supports DDR4 Memory, up to 5100(OC) MHz
• 2.5G LAN and Intel Wi-Fi 6E Solution
• Supports 2-Way AMD Crossfire
MSI MAG X570S TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard

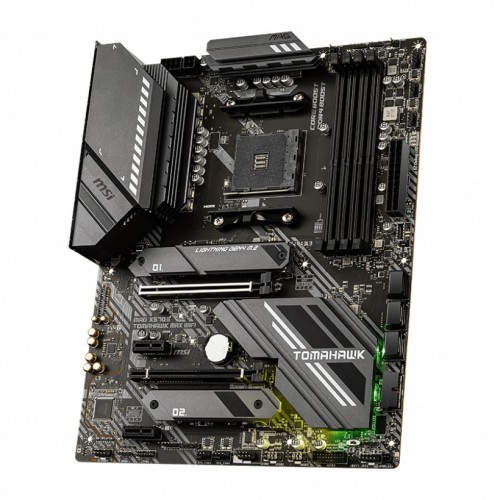

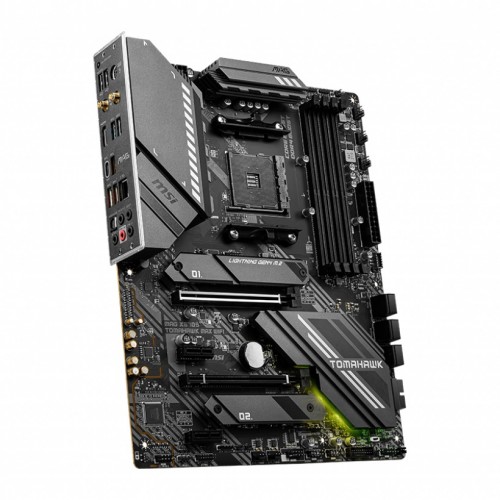

The MSI MAG X570S TOMAHAWK MAX WIFI Motherboard supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, and 2000 G-Series desktop processors. It supports DDR4 Memory, up to 5100(OC) MHz. It features Premium Thermal Solution. Extended Heatsink Design and M.2 Shield Frozr are built for high-performance systems and non-stop works. It is equipped with 2.5G LAN and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs. Reward your ears with the studio-grade sound quality for the most immersive gaming experience with AUDIO BOOST 5. It comes with ith Steel armor PCIe slots. It also supports 2-Way AMD Crossfire.
The MSI MAG X570S TOMAHAWK MAX WIFI comes with 3 years of warranty.
Specification
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports Socket AM4 |
|
| Chipset | AMD X570 Chipset | |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
| Audio | Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Expansion Slots | ||
| PCI | Supports PCIe 4.0 / PCIe 3.0 specification PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors 1x PCIe x16 slot (From processor) PCI_E1 supports PCIe 4.0/ 3.0 x16 1x PCIe x16 slot (From X570 chipset) PCI_E3 supports PCIe 4.0/ 3.0 x4 2x PCIe 3.0 x1 slots (From X570 chipset) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DDR4 memory slots | |
| Supported Memory | Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1 Max overclocking frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4266 MHz 2DPC 2R Max speed up to 3600 MHz For Ryzen 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 3866 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | Up to 128GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1 | |

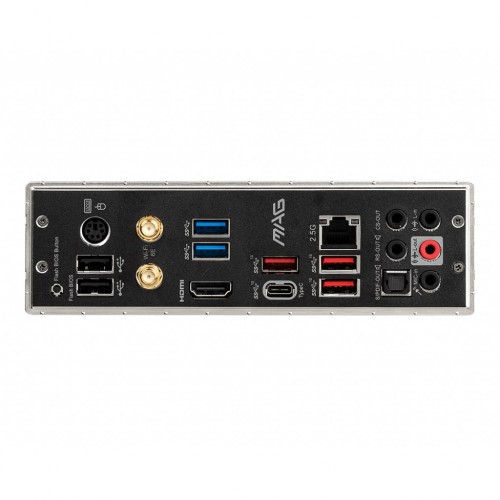

| USB (s) | AMD X570 Chipset 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A & Type-C) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| LAN Port (s) | 1x Realtek 8125B 2.5Gbps LAN Controller | |
| Wireless Communication module | Intel® Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA |
|
| Supported Storage | 6x SATA 6Gb/s ports (from AMD X570 Chipset) 2x M.2 slots (Key M) Support up to PCIe 4.0 for AMD Ryzen 5000 Series and 3000 Series desktop processors Support up to PCIe 3.0 for AMD Ryzen 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor Supports up to SATA 6Gb/s M2_1 slot (from Processor) Support 2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) Supports 2242/ 2260/ 2280 storage devices |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Serial port connector 1x Chassis Intrusion connector |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
