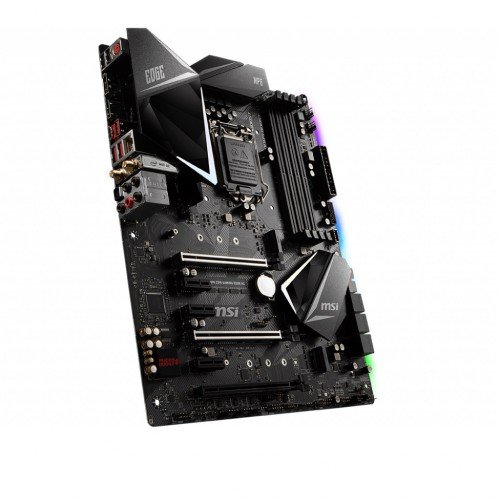

MSI MPG Z390 GAMING EDGE AC DDR4 8th/9th Gen Intel LGA1151 Socket Motherboard
Key Features
• Supports 9th & 8th Gen Intel Processor LGA 1151 socket
• Supports Intel CNVi Wi-Fi Module
• Supports DDR4, up to 4400(OC)MHz
• Twin Turbo M.2, Core & Game Boost
MSI MPG Z390 GAMING EDGE AC DDR4 8th/9th Gen Intel LGA1151 Soceket Motherboard
MSI MPG Z390 Gaming Plus 9th & 8th Gen DDR4 ATX Motherboard is equipped with Extended Heatsink Design, Core boost, Twin Turbo M.2, Game Boost, Turbo USB and Intel CNVi connector and MSI latest Dragon Center APP. This ATX motherboard supports 9th & 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket with DDR4 Memory, up to 4400(OC) MHz. For Lightning Fast Game experience here is added 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2. It is also supports Intel CNVi Wi-Fi module, IEEE802.11 AC wave2, providing a high speed wireless network connection. It’s Audio Boost reward your ears with studio grade sound quality for the most immersive gaming experience. Here is also used Dragon Center which is brand new software that integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.
Specification:
| Basic Information | ||
| Supported CPU | Supports Intel Core 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket | |
| Chipset | Intel Z390 Chipset | |
| Form Factor | 9.6 in. x 12 in. (24.3 cm x 30.4 cm) ATX Form Factor |
|
| Expansion Slots | ||
| PCI | 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes) 3 x PCIe 3.0 x1 slots |
|
| M.2 Socket | 2 x M.2 slot (Key M) Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DDR4 memory slots | |
| Supported Memory | Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Mamory | support up to 128GB | |
| Graphics | ||
| Graphics | 1 x HDMI port 1.4, supports a maximum resolution of 4096×2160@24Hzz 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port 1.4, supports a maximum resolution of 4096×2160@24Hzz | |
| Display Port (s) | 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz | |
| USB (s) | Intel® Z390 Chipset 3x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector) 6x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) |
|
| LAN Port (s) | 1 x Intel I219-V Gigabit LAN controller Intel Wireless-AC 9462 card Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433 Mbps Supports Bluetooth 2.1, 2.1+EDR, 3.0,4.0, 5 |
|
| Supported Storage | Intel Z390 Chipset 6 x SATA 6Gb/s ports 2 x M.2 slot (Key M) Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices Intel Optane Memory Ready |
|
| Audio | Realtek ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x USB 3.1 Gen2 Type-C port 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 5 x 4-pin system fan connectors 1 x Serial port connector 1 x Front panel audio connector 2 x System panel connectors 1 x Thunderbolt Add-on Card Connector 1 x Chassis Intrusion connector 1 x TPM module connector 2 x 4-pin RGB LED connectors 1 x 3-pin RAINBOW LED connector 1 x 3-pin CORSAIR LED connector |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |
What is The MSI MPG Z390 GAMING EDGE AC DDR4 8th/9th Gen Intel LGA1151 Socket Motherboard Price in Bangladesh?
Creatus Computer offers you MSI MPG Z390 GAMING EDGE AC DDR4 8th/9th Gen Intel LGA1151 Socket Motherboard with the best price in Bangladesh. The latest price of MSI MPG Z390 GAMING EDGE AC DDR4 8th/9th Gen Intel LGA1151 Socket Motherboard in Bangladesh is 17400৳. You can buy the MSI MPG Z390 GAMING EDGE AC DDR4 8th/9th Gen Intel LGA1151 Socket Motherboard at the best price from our website or visit our showroom. Order Online for nationwide cash on delivery or visit our Shop. Follow us on Facebook for regular updates and offers. Subscribe to our Youtube channel for reviews of gadget Products. Enjoy our Home delivery service if you are located inside the Dhaka City Area.
