MSI PRO Z690-P DDR4 12th Gen ATX Motherboard
24,000.00৳
Key Features
- Supports 12th Gen Intel Core, Pentium Gold & Celeron processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5000+(OC) MHz
- PCIe 5.0 slots, Lightning Gen4 x4 M.2
- Supports AMD Crossfire

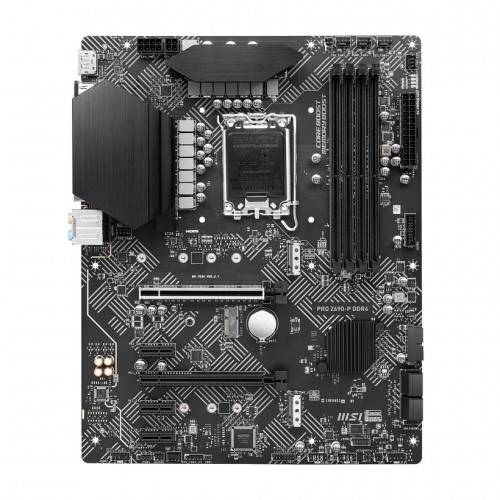

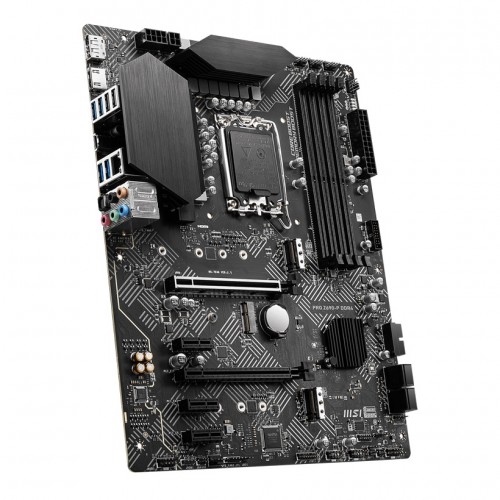

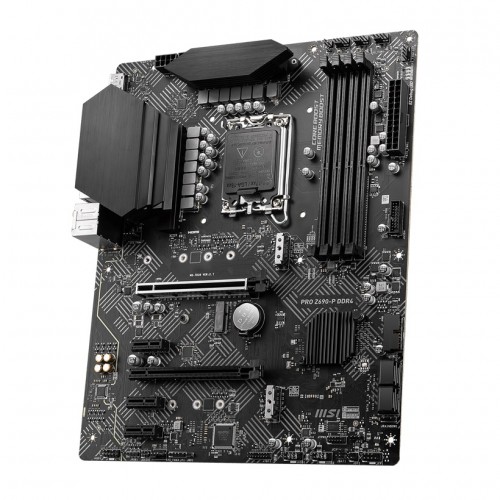

MSI PRO Z690-P DDR4 12th Gen ATX Motherboard
The MSI PRO Z690-P DDR4 Motherboard supports 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket. MSI PRO Z690-P supports DDR4 Memory, up to 5000+(OC) MHz. It delivers a Lightning Fast Game experience with PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2. It comes with an Enhanced Power Design. Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost. It is equipped with an enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/MK, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience.
The MSI PRO Z690-P DDR4 comes upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. It has an 8-layer PCB made of 2oz thickened copper and server-grade level material.
The MSI PRO Z690-P DDR4 comes with 3 years of warranty.
Specification
| Basic Information | ||
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700 |
|
| Chipset | Intel Z690 Chipset | |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Expansion Slots | ||
| PCI | 2x PCIe x16 slots PCI_E1 slot (From CPU) Support PCIe 5.0 x16 PCI_E3 (From Z690 chipset) Support PCIe 3.0 x4 3x PCIe 3.0 x1 slots (Fom Z690 chipset) |
|
| M.2 Socket | 1x M.2 slot with E key for Intel Wireless-AX CNVi and PCIe WiFi module | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | Supports 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5000+ MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Dual-Channel mode non-ECC, un-buffered memory Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 1.4b with HDR port | |
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | Intel Z690 Chipset 8x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 4 ports available through the internal USB connectors) 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports available through the internal USB connectors) 1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel |
|
| LAN Port (s) | 1x Realtek RTL8125BG 2.5Gbps LAN controller | |
| Supported Storage | 4x SATA 6Gb/s ports (From Z690 chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 chipset) PCIe 4.0 x4 SATA 6Gb/s 2242/ 2260/ 2280 storage devices Intel Optane Memory RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Audio | 1x Front panel audio connector | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (Supports RTD3) |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
