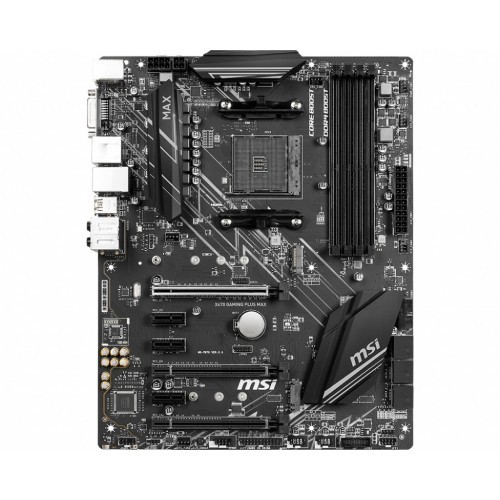

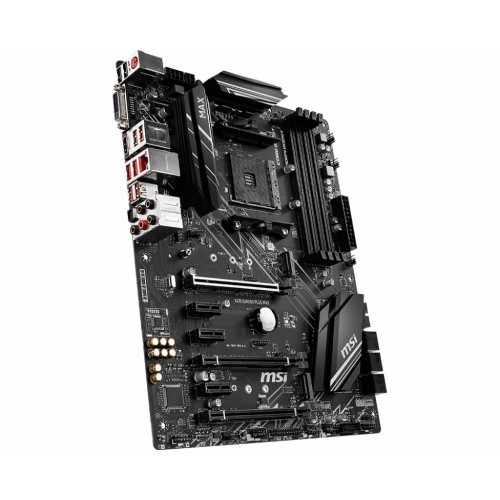

MSI X470 Gaming Plus Max RGB AMD Motherboard
Key Features
• Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen
• Lightning Fast Game experience
• Supports DDR4, up to 4133(OC) MHz
• Core Boost, DDR4 Boost, Audio Boost
MSI X470 Gaming Plus Max RGB AMD Motherboard
MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want. Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We’ve made sure to include enough fan headers with full control to allow you to cool your system any way you want. MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.
This MSI X470 Gaming Plus Max RGB AMD Motherboard also has 03 years warranty.
Specification:
| Basic Information | ||
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 | |
| Chipset | AMD X470 Chipset | |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
| Expansion Slots | ||
| PCI | 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4) 1st, 2nd and 3rd Gen AMD Ryzen™ Processors support x16/x0, x8/x8 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors support x8/ x0 mode Athlon™ with Radeon™ Vega Graphics Processors support x4/x0 mode 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode) 3 x PCIe 2.0 x1 slots |
|
| M.2 Socket | 2 x M.2 slot (Key M) M2_1 slot (from AMD processor) supports PCIe 3.0×4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors) or PCIe 3.0×2 (Athlon with Radeon Vega Graphics Processors) 2242/ 2260 /2280/ 22110 storage devices M2_2 slot (from AMD X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
|
| Memory | ||
| Type | Dual channel memory architecture Supports non-ECC UDIMM memoryy Supports ECC UDIMM memory |
|
| Slots | 4 x DDR4 memory slots | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC For AMD Ryzen Gen3 (R5/R7/R9) Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 Mhz by A-XMP OC MODE For AMD Other CPU Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE |
|
| Maximum Mamory | supports up to 64GB | |
| Graphics | ||
| Graphics | 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1 1 x HDMI port 1.4, supports a maximum resolution of 4096×2160@30Hz1 Only support when using Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors 1st, 2nd and 3rd Gen AMD Ryzen Processors Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors |
|
| Max Shared Memory | Maximum shared memory of 2048 MB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz | |
| USB (s) | ASMedia ASM1143 Chipset 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel AMD X470 Chipset 4 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) AMD CPU 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
|
| LAN Port (s) | 1 x Realtek 8111H Gigabit LAN controller | |
| Supported Storage | AMD X470 Chipset 6 x SATA 6Gb/s ports 2 x M.2 slot (Key M)1 M2_1 slot (from AMD processor) supports PCIe 3.0×4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors) or PCIe 3.0×2 (Athlon with Radeon Vega Graphics Processors) 2242/ 2260 /2280/ 22110 storage devices M2_2 slot (from AMD X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
|
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Internal I/O Ports | PS/2 Combo Port USB 3.2 Gen1 LAN Port HD Audio Connectors USB 2.0 Ports DVI-D Port HDMI Port USB 3.2 Gen1 USB 3.2 Gen2 Optical S/PDIF OUT |
|
| DVI-D (s) | 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |
