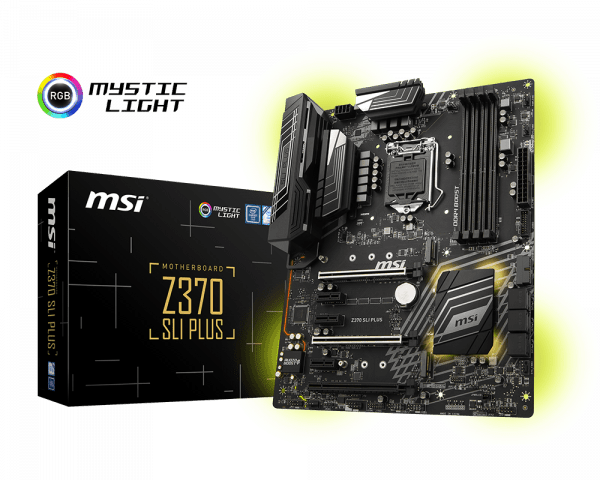

MSI Z370 SLI Plus Motherboard
Original price was: 16,800.00৳ .15,000.00৳ Current price is: 15,000.00৳ .
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4000+(OC) MHz
- DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum compatibility for overclocking performance.
- AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive audio experience
MSI Z370 SLI Plus Motherboard PROCESSOR
Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
CHIPSET
Intel® Z370 Chipset
MEMORY
- 4 x DDR4 memory slots, support up to 64GB
- Supports 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133 MHz
- Dual-channel memory architecture
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
SLOTS
- 3 x PCIe 3.0 x16 slots
- 3 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
- 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@24Hz
- 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
*No Display support when using the Processor model with suffix “F”
MULTI-GPU
- Supports 2-Way NVIDIA® SLI™ Technology
- Supports 3-Way AMD® CrossFire™ Technology
STORAGE
Intel® Z370 Chipset
- 6 x SATA 6Gb/s ports1
- 2 x M.2 slots (Key M)
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card2
- M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
- M2_2 slot supports 2242/ 2260 /2280 storage devices
- Supports Intel® Optane™ Memory Ready for all M.2 slots
- The SATA1, SATA5 and SATA6 ports will become unavailable with some conditions of M.2 devices. Please refer the manual for M.2 & SATA combination table .
- The Turbo U.2 Host Card is not included, please purchase separately.
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 storage devices1
- M.2 PCIe RAID volume can be created with M.2 GENIE.
USB
ASMedia® ASM2142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
Intel® Z370 Chipset
- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO
Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
LAN
- 1 x Intel® I219-V Gigabit LAN controller
INTERNAL CONNECTORS
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water pump fan connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Clear CMOS jumper
BACK PANEL PORTS
- PS/2 Combo Port
- USB 3.1 Gen 2
- USB 3.1 Gen 1
- LAN Port
- HD Audio Connectors
- USB 2.0 Port
- DVI-D Port
- LIGHTNING USB 3.1 Gen2 Type-C
- HDMI
- USB 3.1 Gen 1
- Optical S/PDIF-Out
DIMENSIONS
- 12.0 in. x 9.6 in. (30.5 cm x 24.4 cm)
- ATX Form Factor
MOUNTING
9 mounting holes
OPERATING SYSTEM
Support for Windows® 10 64-bit
BOX CONTENT
MSI Z370 SLI Plus Motherboard
MSI Z370 SLI Plus Motherboard
- MSI® does not guarantee the risks or damages caused by changing the cover.
- These pictures are for reference only and may vary without notice.
