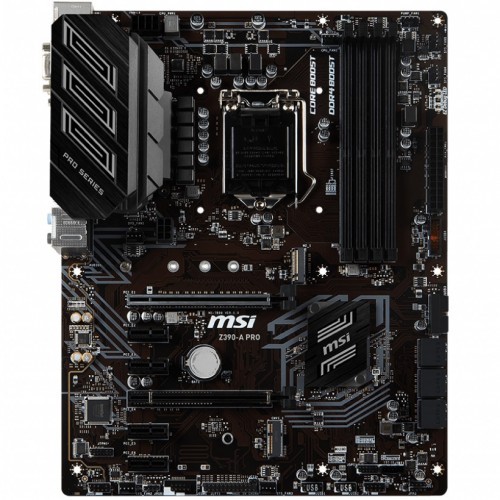

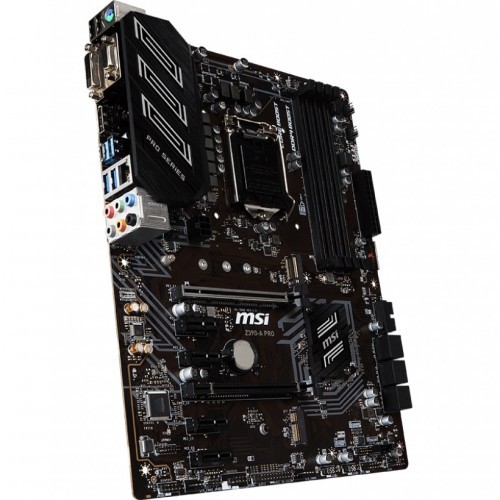

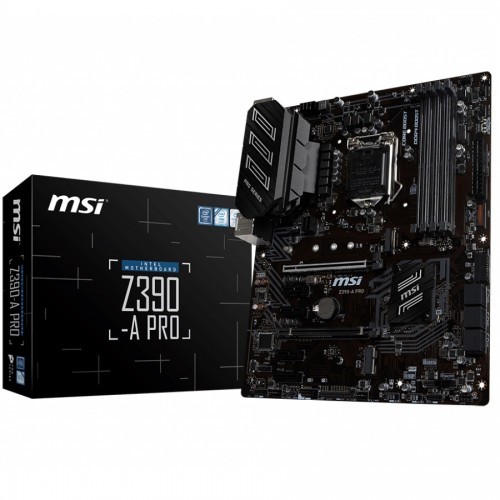

MSI Z390-A Pro 9th Gen ATX Motherboard
Key Features
• Supports 9th & 8th Gen Intel Processor LGA 1151 socket
• Supports Intel CNVi Wi-Fi Module
• Supports DDR4, up to 4400(OC)MHz
• Twin Turbo M.2, Core & Game Boost
MSI Z390-A Pro 9th Gen ATX Motherboard
MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want. Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We’ve made sure to include enough fan headers with full control to allow you to cool your system any way you want. MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.
Specification:
| Basic Information | ||
| Supported CPU | Supports 9th/ 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket | |
| Chipset | Intel Z390 Chipset | |
| Form Factor | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
|
| Expansion Slots | ||
| PCI | 2 x PCIe 3.0 x16 slots(support x16/x4 mode) 4 x PCIe 3.0 x1 slots 1 x M.2 slot with E key for Integrated Intel Wireless-AC(CNVi) module only |
|
| M.2 Socket | 1 x M.2 slot with E key for Integrated Intel Wireless-AC(CNVi) module only 1 x M.2 slot (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices |
|
| Memory | ||
| Type | Dual-Channel Architecture | |
| Slots | 4 x DDR4 memory slots | |
| Supported Memory | DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz non-ECC, un-buffered memory Intel Extreme Memory Profile (XMP) |
|
| Maximum Mamory | support up to 128GB | |
| Graphics | ||
| Graphics | 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz DVI-D port, supports a maximum resolution of 1920×1200@60Hz 1 x DisplayPort, supports a maximum resolution of 4096×2304@60Hz Supports 2-Way AMD CrossFire Technology |
|

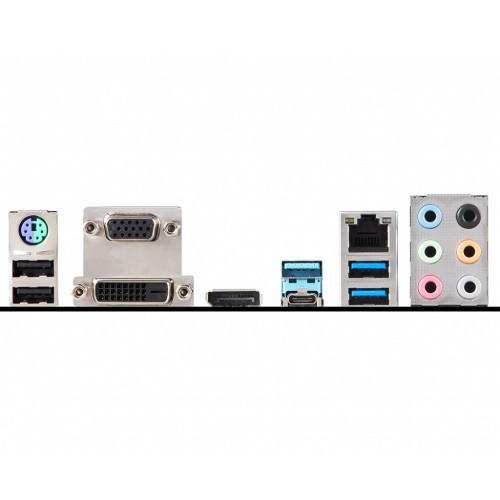

| Connector & Ports | ||
| Display Port (s) | 1 x DisplayPort, supports a maximum resolution of 4096×2304@60Hz | |
| USB (s) | Intel Z390 Chipset 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel) 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) |
|
| LAN Port (s) | 1 x Intel I219-V Gigabit LAN controller | |
| Supported Storage | Intel Z390 Chipset 6 x SATA 6Gb/s ports 1 x M.2 slot (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices Intel® Optane™ Memory Ready |
|
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 8-pin ATX 12V power connector 1 x 6-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x M.2 slots (1 M-Key slot,1 E-Key slot) USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 5 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x 4-pin RGB LED connector Serial Port connector 1 x Clear CMOS jumper Parallel port connector 1 x TPM module connector thunderbolt Add-on card connector 1 x Front OC button connector |
|
| DVI-D (s) | 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |
| Others | ||
| Bundled Software | Support for Windows 10 64-bit | |
