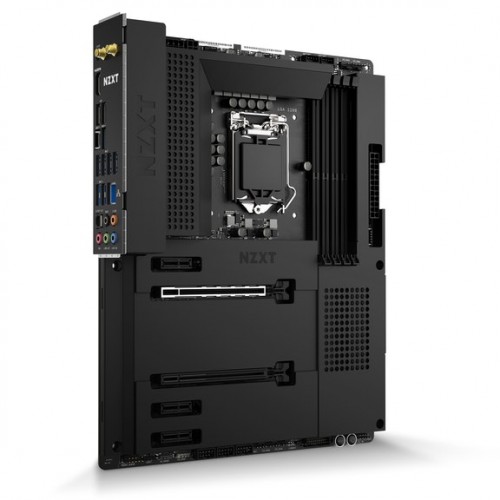

NZXT N7 Z590 Matte Black Intel 11th and 10th Gen ATX WiFi Gaming Motherboard
26,800.00৳
Key Features
• MPN: N7-Z59XT-B1
• Intel Socket LGA1200 for 10th and 11th Generation Processors
• Supports memory overclocking up to 4266 MHz
• 12+2 DrMOS Power Phase Design
• Intel Wifi 6E and Bluetooth V5.2
NZXT N7 Z590 Matte Black Intel 11th and 10th Gen ATX WiFi Gaming Motherboard
The NZXT N7 Z590 Matte Black motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z590 chipset. It is compatible with Intel Socket LGA1200 for Intel 11th Generation Core i9, Core i7, Core i5, and Core i3 processors. This motherboard has a 12+2 DrMOS Power Phase Design. It supports memory overclocking up to 4266 MHz and Intel XMP 2.0. The NZXT N7 Z590 is equipped with Intel Wifi 6E wireless connectivity and Bluetooth V5.2. It is Intel Optane Memory Ready and it has two M.2 connectors for storage devices. The board is supported with Multi-GPU support with AMD CrossFireX Technology. It offers Digital RGB lighting control through NZXT CAM. Digital fan control for fan profiles within NZXT CAM for seven independent fan channels. It features an Integrated rear I/O shield and an efficient layout. It features 8-channel high-definition audio.
The NZXT N7 Z590 Matte Black comes with 3 years of warranty.
Specifications
| Basic Information | ||
| Supported CPU | Intel Socket LGA1200 for 10th and 11th Generation Processors Turbo Boost Max 3.0 Technology |
|
| Chipset | Z590 | |
| Form Factor | ATX | |
| Audio | Realtek ALC1220 Codec 8-Channel High Definition Audio 32-bit / 192kHz DAC Playback Nichicon Fine Gold Series Capacitors |
|
| Expansion Slots | ||
| PCI | 1x PCIe x16 (x16 mode) (11th Gen CPUs – PCIe 4.0, 10th Gen CPUs – PCIe 3.0) 1x PCIe x16 (x4 mode) 3x PCIe 3.0 x1 |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM Slots (Dual-channel Memory Architecture) | |
| Supported Memory | OC Frequency (11th Gen CPUs): 4600+ MHz OC Frequency (10th Gen CPUs): 4400+ MHz Base Frequency (11th Gen CPUs): 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Base Frequency (10th Gen CPUs): 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory Intel XMP 2.0 Support |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Intel Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs) HDMI 2.0 / HDMI 1.4b HDMI Max Resolution: 4096×2160@60Hz AMD 2-Way CrossFireX Technology |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.0 | |
| LAN Port (s) | Realtek RTL8125BG 2.5G | |
| Wireless Communication module | Intel Dual-Band Wireless: AX210 Wi-Fi 6E Protocol: 802.11 a/b/g/n/ac/ax Frequency Bands: 2.4 / 5 / 6 GHz MU-MIMO Support Bluetooth V5.2 |
|
| Supported Storage | 1x M.2 Type 2242/2260/2280 (PCIe x4 mode) 1x M.2 Type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode) 4x SATA 6Gb/s RAID 0/1/5/10 Support Smart Response Technology Rapid Storage Technology Optane Memory |
|
| Internal I/O Ports | 1x M.2 (M Key), Type 2242/2260/2280 1x M.2 (E Key) (For wireless cards) 4x SATA 6Gbps Ports 1x USB 3.2 Gen 2 Header (Type-C) 2x USB 3.2 Gen 1 Header (Up to 4 ports) 3x USB 2.0 Header (Up to 6 ports) 1x Front Panel Audio 1x CPU_FAN Connector (Up to 24W), 1x AIO_PUMP Connector (Up to 24W) 5x SYS_FAN Connector (Up to 24W) 1x 5V ARGB Header, 1x 12V RGB Header, 1x 24-pin EATX Power 2x NZXT RGB LED Header 1x 8-pin ATX 12V Power, 1x 4-pin ATX 12V Power 1x Power Button, 1x Reset Button 4x POST LEDs |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
