Video Memory Specifications | ||
Type | GDDR6 | |
Size | 8GB | |
Resolution | 7680×4320 | |
Core Clock | Boost Clock: Up to 2607 MHz Game Clock: Up to 2428 MHz |
|
Memory Clock | 16 Gbps Effective | |
BUS Type | 128-Bit | |
Memory Interface | PCI-Express 4.0 | |
Stream Processors | 2048 | |
Interface | ||
Display Port | 3x DisplayPort | |
HDMI | 1x HDMI | |
Power Specifications | ||
Connectors | 1 x 8-pin Power Connector | |
Recommended PSU | Minimum 500 Watt Power Supply | |
Consumption | 180W (Board Power) | |
Display Option | ||
Multi Display | Maximum 4 Displays | |
Application Programming Interfaces | ||
DirectX | DirectX 12 Ultimate | |
Physical Specifications | ||
Dimensions | 240(L)X 119.25(W)X 44.82 (H)mm | |
Others | 2.2 slot, ATX | |
Warranty | ||
Manufacturing Warranty | 2 Years Warranty |

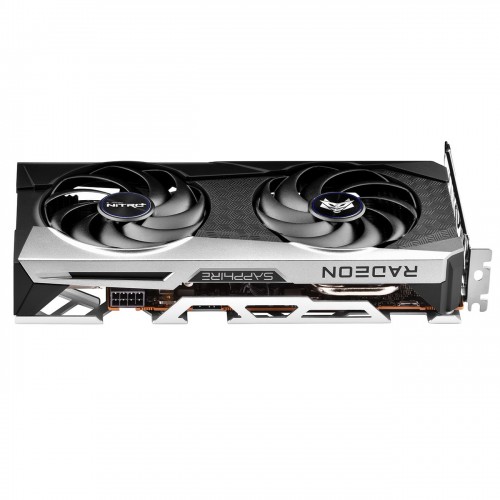

Sapphire NITRO+ AMD Radeon RX 6600 XT Gaming OC 8GB GDDR6 Graphics Card
Sapphire NITRO+ AMD Radeon RX 6600 XT Gaming OC 8GB GDDR6 Graphics Card Headlines With 2048 Stream Processors Running With A Lift Clock Of Up To 2607 MHz And A Game Clock Of Up To 2428 MHz. The Newest 8GB Of GDDR6 High-Speed Memory Clocked At 16 Gbps Effective With 32 MB Of AMD Infinity Cache, Which Dramatically Reduces Latency And Power Consumption, Ensuring Higher Overall Gaming Performance Than Traditional Architectural Designs. It’s Equipped With 4 Output Ports Including 1 X HDMI And 3x Display Port 1.4 With DSC Outputs To Support The Newest Display Monitors Within The Market. The Heart Beat AMD Radeonâ„¢ RX 6600 XT Graphics Card Series Features 32 Powerful Enhanced Compute Units And 32 Ray Accelerators. Remarkable Dual-X Cooling Technology Behold A Silent And Funky Gaming Experience On The Heart Beat Sapphire NITRO+ AMD Radeon RX 6600 XT Graphics Card, Designed With The Powerful Dual-X Cooling Technology. Sapphire NITRO+ AMD Radeon RX 6600 XT Gaming OC 8GB Graphics Card Powered By Two Massive And Quiet Fans, The Streamlined Sort Of The Blades End In Greater Airflow And More Heatsink Coverage At A Coffee Background Level Of 32dBA. Sapphire NITRO+ AMD Radeon RX 6600 XT Gaming OC 8GB Graphics Card Works In Tandem With The Intelligent Fan Control Feature To Stay The Temperature Of All The GPU Components Low, While Balancing Performance And Fan Noise. The Fuse Protection Feature Is Engineered Into The Circuit Of The External PCIe Power Connector To Preserve The Components And Protect The Graphics Card.
Sapphire NITRO+ AMD Radeon RX 6600 XT Gaming OC 8GB GDDR6 Review
The new Sapphire NITRO+ AMD Radeon RX 6600 XT Gaming OC 8GB GDDR6 Graphics Card is the next custom Radeon RX 6600 XT on the GPU review bench today.
SAPPHIRE isn’t changing much here with the PULSE Radeon RX 6600 XT GAMING OC, with the PULSE cooler and style remaining unchanged — what’s new is the Navi 23 GPU and 8GB of GDDR6 underneath. You’re not going to see much performance difference between the custom RX 6600 XT cards, so what is SAPPHIRE doing differently here?
AMD’s new Radeon RX 6600 XT is everything we’ve come to know and love about the Radeon RX 6000 series graphics cards: we have the kick-ass RDNA 2 architecture, 8GB of GDDR6 memory, Infinity Cache, HDMI 2.1 connectivity, FidelityFX Super Resolution (FSR), ray tracing, and everything in between
The new Radeon RX 6600 XT has 8GB of GDDR6 memory clocked at 16Gbps on a 128-bit memory bus with 32MB of AMD Infinity Cache (down from the 128MB on the higher-end Radeon RX 6800 XT for example). Infinity Cache helps the Radeon RX 6600 XT swing above its weight, especially when compared with previous-gen GPUs in the same “price range” as the RX 6600 XT.
AMD is marketing its new RDNA 2-powered Radeon RX 6600 XT graphics card up against NVIDIA’s previous-gen Pascal-based GeForce GTX 1060 and showing that it has far over 100%+ performance gains in the latest titles. This is a huge deal for gamers that have a GTX 1060 or RX 5×0 series graphics card, and want an RDNA 2-powered upgrade… the Radeon RX 6600 XT is a fantastic option for 1080p gamers.
Hell, the Radeon RX 6600 XT is even capable of beating NVIDIA’s new Ampere-powered GeForce RTX 3060 graphics card, but not the GeForce RTX 3060 Ti — we’ll have more on that later, but AMD has positioned the new RX 6600 XT very well in the performance department.
