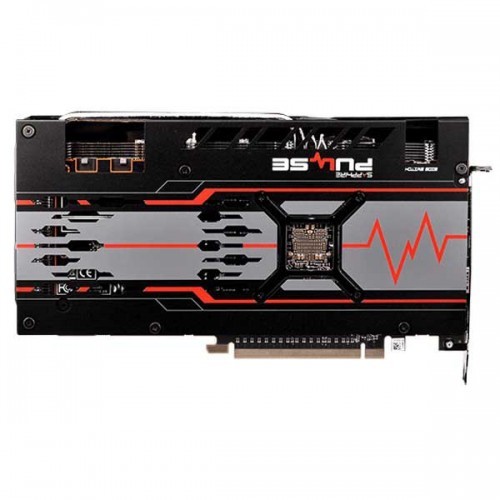

Sapphire Pulse Radeon RX 5600 XT 6GB GDDR6 Graphics Card
Key Features
• Memory: 6GB/2192 bit DDR6 14 Gbps Effective
• Stream Processors: 2304
• GPU: Boost Clock: Up to 1615 MHz
• Radeon FreeSync 2 HDR Supported
Specifications:
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 6GB | |
| Resolution | HDMI: 4096×2160@60Hz DisplayPort1.4: 5120×2880@60Hz Game Index: Extreme 1080P, 1440P Entry |
|
| Core Clock | Boost Clock: Up to 1750 MHz Game Clock: Up to 1615 MHz |
|
| Memory Clock | 14 Gbps Effective | |
| BUS Type | PCI Express 4.0 | |
| Memory Interface | 192 bit | |
| Stream Processors | 2304 | |
| Others | Sapphire Features: Power Design Free Flow TriXX Supported TriXX Boost Intelligent Fan Control IV Precision Fan Control Robust VRM Cooling Robust Memory Cooling Dual-X Cooling Technology Tough Metal Backplate PCB Layers Two-Ball Bearing Fan Quick Connect Fuse Protection Dual BIOS AMD Features: RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon™ Software Radeon™ Boost Image Sharpening Radeon™ Anti-Lag AMD FidelityFx Async Compute Rays Audio + True Audio Next Radeon™ FreeSync™ 2 HDR VR Ready Premium |
|
| Interface | ||
| Display Port | 3x DisplayPort | |
| HDMI | 1x HDMI | |
| Power Specifications | ||
| Connectors | 1 x 8-pin | |
| Recommended PSU | Recommended 500 Watt Power Supply (Minimum 450 Watt Power Supply) | |
| Consumption | 160W | |
| Display Option | ||
| Multi Display | Yes ( Maximum 4 Outputs ) | |
| Application Programming Interfaces | ||
| DirectX | 12 | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 254 x 135 x 46.5 mm | |
| Others | Sapphire Features: Power Design Free Flow TriXX Supported TriXX Boost Intelligent Fan Control Precision Fan Control Robust VRM Cooling Robust Memory Cooling Dual-X Cooling Technology Tough Metal Backplate PCB Layers Two-Ball Bearing Fan Quick Connect Fuse Protection Dual BIOS AMD Features: RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon Software Radeon Boost Image Sharpening Anti-Lag AMD FidelityFx Async Compute Radeon Rays Audio + True Audio Next FreeSync 2 HDR |
|
| Warranty | ||
| Manufacturing Warranty | 2 Years Warranty | |
Sapphire Pulse Radeon RX 5600 XT 6GB GDDR6 Graphics Card
The Sapphire Pulse Radeon RX 5600 XT 6GB GDDR6 Graphics Card offers incredible performance at the optimal budget for every gamer. With lightning fast GDDR6 memory and redefined display and media engines, the PULSE RX 5600 XT is the ideal graphics card for 1080p gamers. It is powered by AMD’s extreme RDNA architecture, alongside our innovative Dual-X Cooling Technology which keeps the GPU, Memory and VRM components icy cool at low noise levels. The all-aluminum backplate preserves the rigidity of the GPU and guarantees nothing bends, dust stays out and adds another level of passive cooling to dissipate heat. Pivotal SAPPHIRE features like the Quick Connect Fan, Dual Bios Support and Dual Ball Bearing Fans keep your GPU running smooth and stable
Take your gaming to the next level with the SAPPHIRE PULSE RX 5600 XT as the beating heart of your PC! Explore all the incredible features that come with the SAPPHIRE PULSE RX 5600 XT Graphic Card. We’ve split our features into 3 categories so you can easily see all the features we pride ourselves in designing to create the best gaming experience possible for you.
