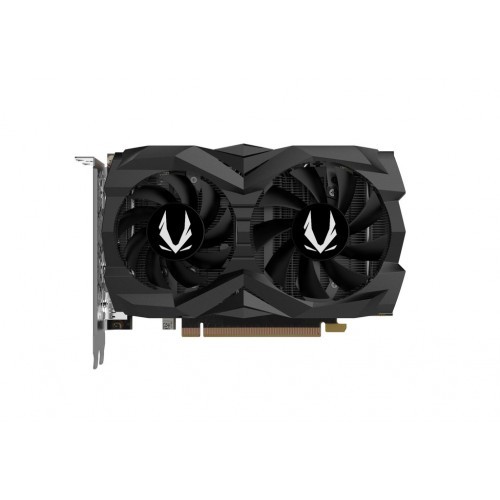

ZOTAC GAMING GeForce GTX 1660 Ti 6GB GDDR6 Graphics Card
40,000.00৳
Key Features
• Video Memory: 6GB
• Engine Clock: 1770 MHz
• Bus Standard: 192-bit
• 4K and VR Ready
ZOTAC GAMING GeForce GTX 1660 Ti 6GB GDDR6 Graphics Card
ZOTAC GAMING GAMING GeForce GTX 1660 Ti 6GB Graphics Card provides the user with a high performance graphics card that is able to do almost anything you want. This card has been made by NViDIA (which is One of the Top Graphics Card developers) which ensures the best quality for gaming, designing and video editing. The gaming e of this card is great. Having a engine clock speed of base 1290 to 1770 MHz and Memory Clock of 12 GHz gives a limitless option to gaming allowing to play almost all games without any hassle and the smoothness of the gaming is also note worthy. The best feature of this card allows you to play games or do work on 4K resolution and also supports VR This makes the chose of the Graphics Card for any level gamer to truly have the best experience. This card is also made for Designers, allowing to use 4 screens and the high performance of the of the Graphics Card, the Designers can easily complete their work. The other thing is that the card comes with 2 cooling fans that allows faster cooling to the Graphics Card and help it to be able to over clock the performance of the card.
ZOTAC GAMING GeForce GTX 1660 Ti 6GB GDDR6 Review
The Nvidia GAMING GeForce GTX 1660 Ti is a Turing-based mid-range GPU. However, the GTX 1660 Ti does not feature the much-sought-after features of the RTX series such as DLSS and Raytracing. Nevertheless, the GTX 1660 Ti is still a good choice, if you do not wish to burn a huge hole in your pocket. You can learn how well Zotac’s GPU performs by reading our review.
The Zotac GAMING GeForce GTX 1660 Ti is a mid-range graphics card that has 1536 shader units and 6 GB of GDDR6 VRAM. This is why the GTX 1660 Ti is primarily suited for 1080p gaming. Zotac’s GPU is very compact and measures only 17.3 cm (~6.8 in), which is why it can be installed in very small cases. Zotac’s GeForce GTX 1660 Ti Twin Fan is compliant with Nvidia’s reference specifications for the GTX 1660 Ti, which means that Zotac has chosen not to overclock this model. Therefore, the maximum boost clock amounts to 1770 MHz, whereas other models of the GTX 1660 Ti can boost their core clocks higher than 1800 MHz.
In terms of connectivity, the Zotac GAMING GeForce GTX 1660 Ti offers three DisplayPort 1.4 outputs as well as an HDMI 2.0b port. In addition to drawing power from the PCI-E slot, the GPU also requires an 8-pin power connector.
Our test bench is based on a current AMD platform. The Gigabyte X470 Aorus Gaming 7 Wi-Fi serves as the motherboard. The CPU, which is known as the AMD Ryzen 7 2700X, offers a lot of performance. The system is cooled by an all-in-one water cooler from Be Quiet (Silent Loop 280mm). The 16 GB of 3400 MHz RAM comes from G-Skill. The Acer Predator XB321HK does not represent a bottleneck, thanks to its 4K resolution. We are very grateful to AMD for providing us with the above-mentioned system.
The Nvidia GAMING GeForce GTX 1660 Ti is a powerful, mid-tier, Turing-based, desktop GPU. The GTX 1660 Ti relies on the TU116 chip with 1536 shader units, 48 ROPs, 96 TMUs and a 192-bit-wide memory bus (clocked at 6 GHz, effectively 12 GHz, bandwidth: up to 288 GB/s). The notebook version of the GTX 1660 Ti is 10 to 20 % slower due to a lower TDP.
The GAMING GeForce GTX 1660 Ti chip and other Turing-based GPUs are produced using the 12-nm manufacturing process. However, the GeForce GTX 1660 Ti does not offer the latest features such as DLSS (Deep Learning Super Sampling) and Real Time Ray Tracing. Nevertheless, there are some architectural improvements when it comes to floating point and integer performance. These operations can now be carried out simultaneously. Other notable features include Adaptive Shading, unified cache, DisplayPort 1.4, HDMI 2.0b, HDR, Simultaneous Multi-Projection (SMP) as well as H.265 encoding and decoding (PlayReady 3.0).
At Full HD resolution, the GeForce GTX 1660 Ti performs somewhat worse than the GeForce GTX 1070, but significantly better than the GeForce GTX 1060. Therefore, it is best-suited for Full HD gaming. However, it can run less demanding titles in 1440p.
GAMING GeForce GTX 1660 Ti energy consumption of the GeForce GTX 1660 Ti amounts to 120 watts. The older GeForce GTX 1060 also has a TDP of 120 watts.
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 6GB | |
| Memory Clock | 12 Gbps | |
| BUS Type | 192-bit | |
| Interface | ||
| Display Port | 3 x 1.4 | |
| HDMI | 2.0b | |
| HDCP | Yes | |
| Power Specifications | ||
| Recommended PSU | 450W | |
| Consumption | 120W | |
| Display Option | ||
| Multi Display | Quad Display | |
| Application Programming Interfaces | ||
| DirectX | 12 API feature level 12_1 | |
| OpenGL | 4.5 | |
| Physical Specifications | ||
| Dimensions | 173.4mm x 111.15mm x 35.3mm | |
| Others | Windows 10 / 7 64-bit Dual Slot Dual Fan |
|
| Warranty | ||
| Manufacturing Warranty | 02 years warranty (3 Years Warranty available if registered online within 28 days of Purchase) Total warranty:- 2+ 3 ( after reg.) = Total 5 years | |
