Zotac Gaming GeForce RTX 3080 Trinity OC LHR 10GB GDDR6X Graphics Card
Key Features
- MPN: ZT-A30800J-10PLHR
- Active Fan Control with FREEZE Fan Stop
- FireStorm Utility, VR Ready
- IceStorm 2.0 Advanced Cooling
- LHR 43 MH/s ETH hash rate (est.)
Zotac Gaming GeForce RTX 3080 Trinity OC LHR 10GB GDDR6X Graphics Card
Zotac RTX 3080 Trinity OC LHRÂ 10GB Graphics Card get Amplified with the ZOTAC GAMING GeForce RTX 30 Series which is based on the NVIDIA Ampere architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast GDDR6X memory, the ZOTAC GAMING GeForce RTX 3080 Trinity OC LHR gives rise to amplified gaming with ultra graphics fidelity. This new GPU is featured with 2nd Gen Ray Tracing Cores, 3rd Gen Tensor Cores, SPECTRA 2.0 RGB Lighting, IceStorm 2.0 Advanced Cooling, Active Fan Control with FREEZE Fan Stop, Metal Frontplate and RGB LED Backplate, FireStorm Utility, VR Ready. The ZOTAC implemented the IceStorm 2.0 advanced cooling system, for cooling. It is Built for wider coverage, the triple fans feature 11 blades to increase airflow by up to 10%.
Active Fan Control lets you have more control over the fans using ZOTAC GAMING FireStorm software. SPECTRA 2.0 provides dynamic RGB lighting, that allowing users to customize the color and lighting pattern, also in the ZOTAC GAMING FireStorm software. The front panel of the Graphics card features a variety of outputs, such as DisplayPort 1.4a and HDMI 2.1. HDMI 2.1 supports up to 48 Gb/s bandwidth and a range of higher resolutions and refresh rates, including 8K / 60fps, 4K 120fps, and even up to 10K. The RTX 3080 is not just about high-resolution gaming. The Computationally intensive programs can utilize the GPU’s 8704 cores to accelerate tasks using CUDA and other APIs.
Zotac Gaming GeForce RTX 3080 Trinity OC LHR 10GB GDDR6X Review
We have here with the ZOTAC GeForce RTX 3080 a triple-slot, triple-fan design — just like the custom MSI GeForce RTX 3080 GAMING X TRIO that I reviewed a few days ago. It keeps the GA102 GPU and 10GB of GDDR6X much cooler than NVIDIA’s own GeForce RTX 3080 Founders Edition.
Zotac RTX 3080 Trinity OC LHR doesn’t have the best boost GPU clocks out of the box, but this is the stock Trinity model — there is the faster RTX 3080 Trinity OC, RTX 3080 AMP Holo and the flagship RTX 3080 AMP Extreme Holo. I’m hoping we can test all 4 of these to compare all of them against each other.
Because, the ZOTAC GeForce RTX 3080 Trinity on its own doesn’t really stand out.
| Video Memory Specifications | ||
| Type | GDDR6X | |
| Size | 10GB | |
| Resolution | 7680 x 4320 @60Hz | |
| Core Clock | Boost: 1725 MHz | |
| Memory Clock | 19 Gbps | |
| BUS Type | 320-bit | |
| Memory Interface | 320-bit | |
| CUDA Cores | 8704 | |
| Interface | ||

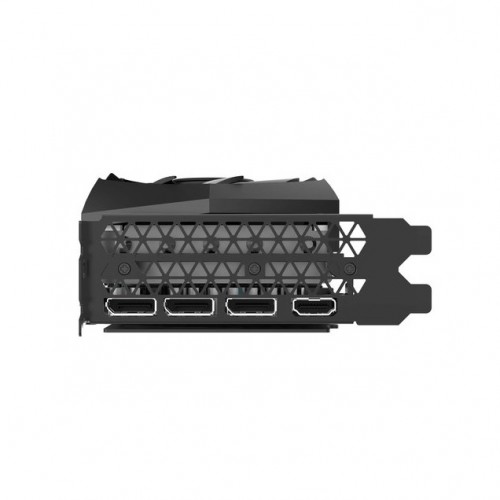

| Display Port | 3 x DisplayPort 1.4a (up to 7680×4320@60Hz) | |
| HDMI | HDMI 2.1 (up to 7680×4320@60Hz) | |
| HDCP | 2.3 | |
| Power Specifications | ||
| Connectors | 2 x Dual 6-pin to 8-pin cable | |
| Recommended PSU | 750W | |
| Consumption | 320W | |
| Display Option | ||
| Multi Display | Quad Display | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 317.8mm x 120.7mm x 58mm / 12.5″ x 4.8″ x 2.3″ | |
| Warranty | ||
| Manufacturing Warranty | 02 years warranty (3 Years Warranty available if registered online within 28 days of Purchase) Total warranty:- 2+ 3 ( after reg.) = Total 5 years | |
